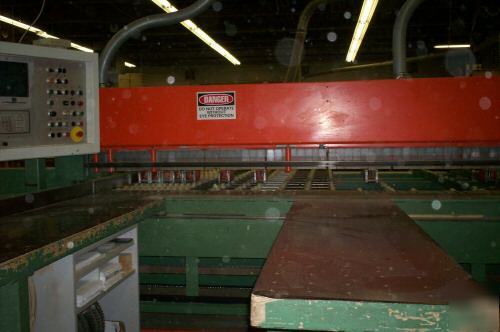

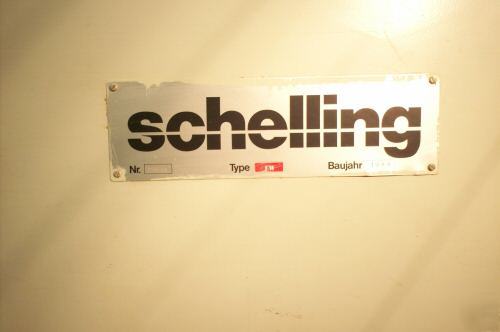

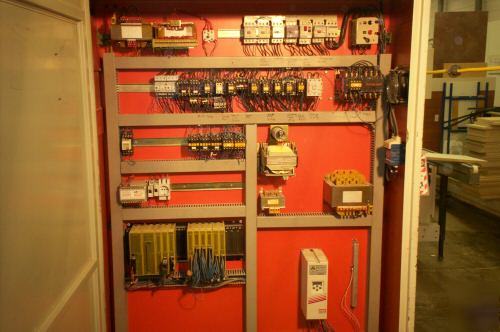

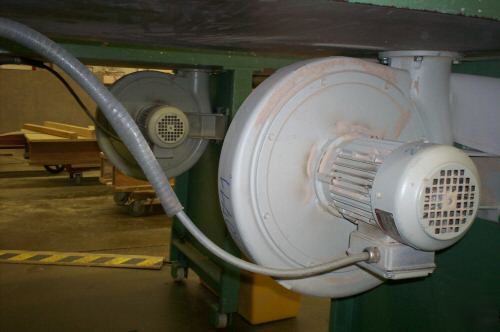

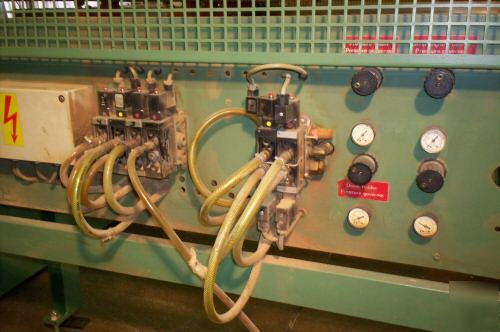

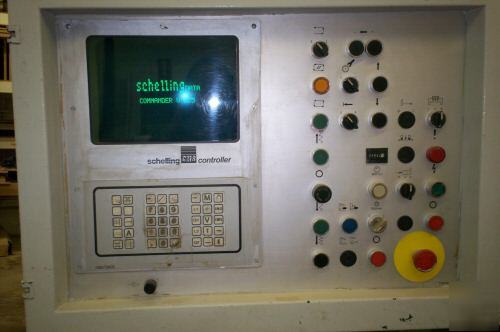

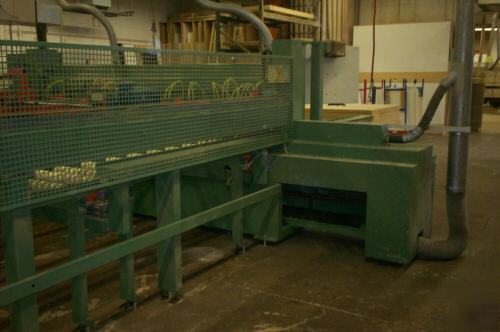

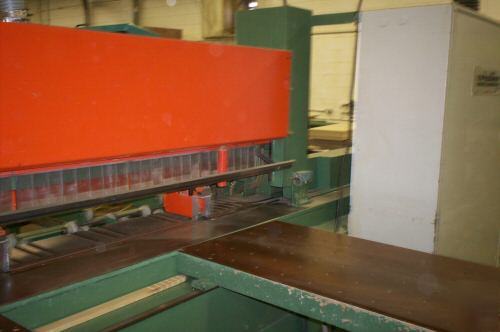

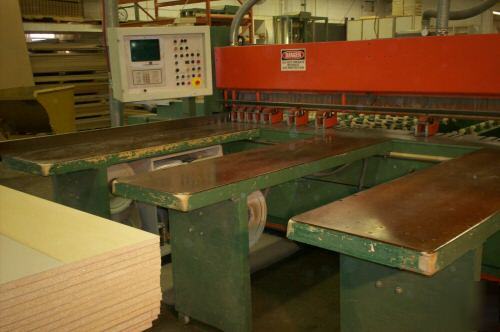

This item is a Schelling panel saw, that was purchased new and has been used in cabinet shop production since. This machine is dependable and still has a few good years in it. This saw is perfect for a small shop owner who wants to increase production, but doesn't have a large budget for new equipment. Manufacturer: Schelling America Inc. Electrical requirements: 220 / 3-Phase a. Main saw motor: P = 18, 0 HP 60 HZ; n = 3800 U/min b. Scoring saw motor: P = 2, 4 HP 60 HZ; n = 5500 U/min a. Feed speed: 5 – 40 m/min infinitely variable b. Return speed: 40 m/min constant a. Main saw blade: 400 mm dia.; 30 mm bore b. scoring saw blade: 200 mm dia.; 20 mm bore 7) Cutting length x infeed depth b. Force of pressure: apprx. 1000 N to 8000 N a. 1 connection with 150 mm dia. (28 m3 /min at70 mm WS) b. 3 connections with 80 mm dia. (ea. 8 m3 /min at70 mm WS) a. 20 1/min at 6 bar (standard execution) a. Basic machine: FW 330 – 22000 kg b. Accessories: depending on execution 13) Program (cut list storage) approx. 15 lists depending on size. 14) Original controls were replaced with “commander controls†in late 90’s. 15) Saw was removed from service 11/29/2006 (fully operational). (please look at our rules and privacy policy) |
