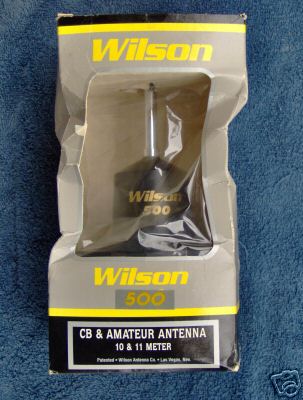

Well folks the baby is on the way and some of my prizes in the closet have got to go. Brand New Wilson 500 Base load magnet mount CB antenna · Made with high impact Thermoplastic · Heavy duty coil uses 12 gauge copper wire · Exclusive low loss coil design (Patent #4,882,591) · 54" 17-7 PH stainless steel whip · Frequency range 26 MHz to 30 MHz WHY THE Wilson "500" PERFORMS BETTER The Wilson 500’s higher gain performance for an economical antenna is the result of several design modifications to the famous Wilson 1000. Using the basic design of the W-1000, Wilson is able to produce a mid priced magnetic antenna with great performance characteristics. This produced the most powerful CB base loaded antenna available in its price range. Wilson’s first priority was to reduce the dielectric loss by removing as much of the plastic inside the coil as possible. This was accomplished by suspending the coil in air, supported only at four small points, 90 degrees apart, in effect removing 95% of the plastic from the inside surface of the coil. This reduced the dielectric loss to a negligible amount. The second priority was to get rid of the resistive heat losses in the coil. Since most of the RF energy at 27 MHz travels on the surface of the wire, it was decided to increase the surface area by making the diameter of the wire 12 gauge copper. Finally, to get rid of the losses in the matching between the coax and the loading coil, the lossy capacitor was eliminated and a more difficult but more efficient means of coupling the antenna was used. A Scalar Network Analyzer was used to determine the very precise point to direct match the coil with the coax and obtain the best match with maximum power transfer. The combination of all these accumulated design points allows the W-500 to have a 2,000 watt power rating with a 20-25% increase in performance over the Little Wil. ******* Happy Holidays to all********** (please look at our rules and privacy policy) |
