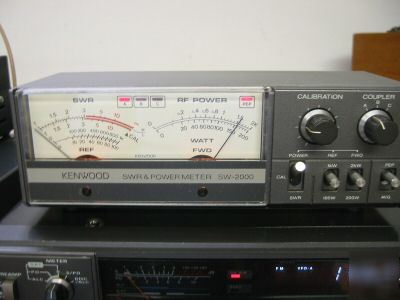

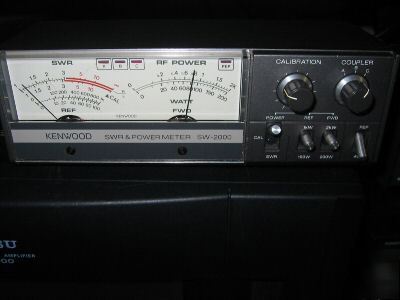

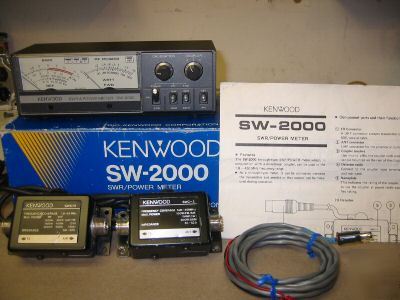

KENWOOD SW-2000 WITH ORIGINAL INSTRUCTIONS AND ORIGINAL BOX ALONG WITH ONE SWC-2 COUPLER AND ONE SWC-3 COUPLER. ALSO INCLUDED IS THE ORIGINAL INTSRUCTION SHEET FOR THE SWC-1, SWC-2, AND SWC-3 COUPLERS AND A DC POWER CORD FOR THE METER LIGHTS AND PEP MEASUREMENT. WITH THE INCLUDED SWC-3 COUPLER THE KENWOOD SW-2000 CAN MEASURE UP TO 2KW IN THE HF RANGE. THE SWC-2 COUPLER CAN READ UP TO 200 WATTS SSB BETWEEN 140-450MHz. THE KENWOOD SW-2000 AND COUPLERS ARE ALL IN EXCELLENT OPERATING CONDITION AND IN ALSO APPEARANCE. THE SW-2000 IS A THROUGH-TYPE SWR/ POWER OR SWR/WATT METER WHICH IN CONJUNCTION WITH 3 DIRECTIONAL COUPLERS CAN BE USED IN THE 1.8 TO 450 MHz FREQUENCY RANGE. AS A THROUGH TYPE METER THE SW-2000 CAN BE CONNECTED BETWEEN THE TRANSMITTER AND ANTENNA SO THAT THE OUTPUT CAN BE MEASURED DURING TRANSMISSION. THE COUPLER(S) AND DISPLAY UNIT CAN BE SEPARATED SO THE DISPLAY UNIT CAN BE MOUNTED WHEREVER CONVENIENT. SINCE UP TO 3 COUPLERS CAN BE CONNECTED TO THE DISPLAY UNIT, ONE DISPLAY UNIT CAN BE USED TO OBSRVE A NUMBER OF TRANSMITTERS OR ANTENNA SYSTEMS. THE SW-2000 DISPLAY UNIT USES DUAL METERS TO SIMULTANEOUSLY MEASURE FORWARD AND REFLECTED POWER FOR FAST AND EASY TRANSMITTER TUNING. THE SW-2000 SWR/POWER METER CAN MEASURE SINGLE SIDE BAND PEP (PEAK ENVELOPE POWER). SEE THE PHOTOS FOR THE KENWOOD SW-2000 AND INCLUDED COUPLERS IN ACTION. THE DARKER PHOTO SHOWS THE SW-2000 DISPLAY READING THE SWC-3 WHICH IS CONNECTED TO MY YAESU MARK V AND QUADRA AMP. THE NEXT PHOTO SHOW THE KENWOOD SW-2000 ON TOP OF MY YAESU FT-736R AND IS READING POWER FROM THE SWC-2 COUPLER WHICH IS CONNECTED TO THE 736 AND AMPLIFIER. I HAVE OWNED THESE SINCE THEY WERE NEW AND WHEN I UPGRADED MY STATION THEY BECAME PART OF MY BACK UP STATION WHICH I AM NOW SELLING. (please look at our rules and privacy policy) |
