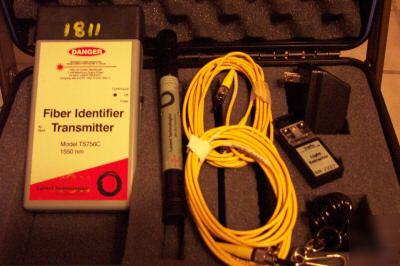

LUCENT TS956C FIBER IDENTIFIER KIT - 1500nm The TS956C Fiber Identifier Kit contains:Complete instructions,the TS756C Fiber Identifier Transmitter, the TS856C Fiber Identifier Receiver, one ST II to ST II jumper, one ST II to Keyed Biconic jumper, and one Macrobend Fixture all packaged in a waterproof hardside carrying case. This kit provides everything needed to identify fibers in a multi-fiber cable. This kit uses a 1550 nm laser to launch a 2-KHz modulated signal into one end of an optical fiber. The included receiver indicates 2-KHz signal detection by emitting a tone from a buzzer while lighting a green LED. The included Macrobend Fixture allows signal detection without access to the end of the optical fiber. Output Power: -9 dBm to -5dBm (-6dBm typical at 25*C) Fabry Perot Laser Diode Modulation: 2 KHz and 2 KHz pulsed at 1 Hz Operating Temperature: -20 *C to +50 *C Storage Temperature: -40 *C to +60*C Dimensions: 3.7"W x 7.3"D x 1.5"H (9.4 cm x 18.5 cm x 3.8 cm) Battery: 4 AA Cells (Lithium or Alkaline) Battery Operation Life: >200 Hours ( Lithium at 20* C) Battery Shelf Life: 10 Years (Lithium) (please look at our rules and privacy policy) |
