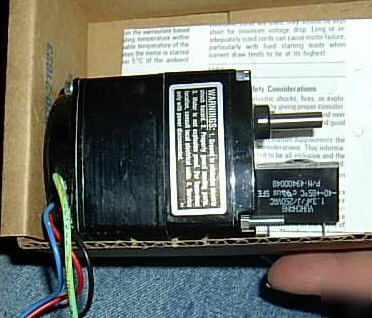

Standard Features * Totally enclosed, non-ventilated IP-20 rating. * Permanently lubricated, noise tested ball bearings. * Three-wire winding simplifies reversing circuitry. * Impedance protected to prevent current overload (gearmotor should not be stalled when powered up). Contact us for specific gear ratios. * Three winding types are available. * Permanently lubricated gearing utilizing grease. * Helical pinion accurately cut on motor shaft for maximum strength and minimum noise. * Non-metallic helical primary gear for quietness. * Steel helical gearing on subsequent stages for quietness and high strength. K-2 Series Parallel Shaft AC Gearmotor Application Information * Capacitor is included with motor. * Face mounting is standard. Category Permanent Split Capacitor, Normal Slip, Non-Synchronous Speed (rpm) 260 Rated Torque (oz-in) 12 Motor HP 1/300 Volts 115 Hz 60 Phases 1 Amps 0.11 Gear Ratio 6 Radial Load (lbs) 20 Length XH (inch) 2.87 Weight (lbs) 2.6 Capacitor Part Number 49400048 (included) Product Type KCI-24A2. 1/4" shaft ,3/4" in length. Retail price $183.00
