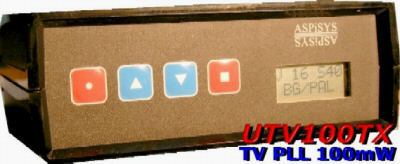

A TV LOW POWER PLL Transmitter with LCD and Keyboard covering ALL VHF-UHF TV FREQUENCIES & SYSTEMS!BRAND NEW FROM MANUFACTURER! UTV-100TX 100mW ALL SYSTEMS TV PLL SENDER! This is the successor to our popular TV PLL (which has been discontinued). Now it comes with a nice case (boxed and ready to use). UTV-100TX is a color video/audio DSB RF modulator / sender board for educational, home or other similar use. You connect video and/or audio and send it wirelessly up to 100m (actual distance varies with surrounding conditions, guaranteed output 100mW at any selected channel). The video input can be from a VCR or VCP, a CCTV camera, a video mux out, etc. It's also ideal for wireless monitoring from a distance, or any kind of surveillance including audio. Reception is on a regular television set on VHF or UHF (any channel whose frequency is from 47MHz to 880MHz). The same unit is suitable for VHF and/or UHF. The most common use is the distribution of VCR/VCP to unlimited TV sets (within the reception range, approximately a 100m radius from the TV PLL Sender). You can change the RF output channel on the fly. Just go the channel selection ‘menu’ and press the UP or DWN buttons to go to the next or previous channel, respectively. The transmission channel and its corresponding frequency will be displayed on the 2x8 LCD screen. You can change the system independently of the channel. This gives a wider range of possibilities. Possible systems are: BG, DK, MN, I, L which are suitable for PAL, SECAM (L only), and NTSC. Another ‘menu’ selection allows to toggle the output between VIDEO Input and TEST mode. TEST mode modulates a two-vertical-bar test screen along with 1 KHz sound that helps tune the TV set more easily. All settings can be saved internally for next power up. Fitted in the Teko 011 plastic enclosure. 45 - 870 MHz (or all CCIR, FCC, and ASIA channels & cable also) 100mWatt at 50 Ohm. No tuning required! Power output is thru "F" type connector! PAL (B/G, D/K, I), NTSC M/N, SECAM L mono unbalanced 50kΩ with pre-emphasis. 250mV - 2.5Vpp Less than 0.3% @ 1 KHz (Typical 0.1% @ 1KHz) Each unit is FULLY ASSEMBLED AND TESTED. Download the UTV100TX usage instructions (~15KB). NOTE: The unit comes without antenna and power supply! you can use a telescopic whip antenna and a 15VDC wallpack PSU for it. If you need more info on that, contact us! THIS DEVICE NEEDS USER TO HAVE SOME MINIMUM TECHNICAL SKILLS AT LEAST! For additional info send email to me ASPiSYS Ltd. Electronics. Athens - GREECE (EU)We design (for companies) & also sell our own electronic systems for home, offices, hobbies, etc P.O. Box 14386, Athens 11510, GREECE ASPiSYS Ltd. GREECE (+30) (***) 771-9544 (Business Hours: 9am-5pm GMT+2 time zone) FAX: (+30) (***) 771-4983 (24-hour/7-day) (please look at our rules and privacy policy) |
