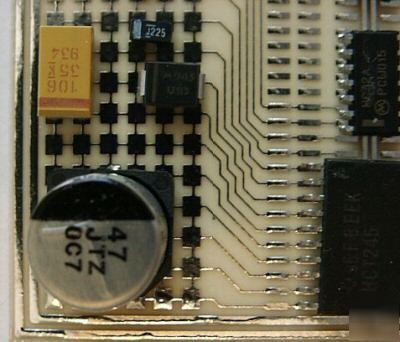

Surface Mount Prototyping PCBBuild your own Surface Mount and DIP circuits in less time and labor! PROTO-CHIP - The Newest, and Best protoboard to use for building those SMD circuits, for any electronic project, at work, home, or school. Government R&D Labs are using them NOW!! Boards are made in an ISO9002 shop. If this one is not what you want, see the website below, for more choices. Easy to use, by placing SMD components on pads, arranging the parts to your own design layout, then trim traces off you do not need in circuit, and solder them in! This saves time and headaches, trying to wire up SOIC, SOP chips, 0603, 0805, 1206 caps, resistors, diodes, SOT23 transistors. Give yourself a helping hand, by doing less soldering! Proto-Chip will fit both narrow and wide body SOIC-8 through 28 pin chips! PROTO-CHIP's size is about a pack of cigarettes, 0.062" thick, FR-4, 1 OZ. copper, with a tinned coating for easier soldering, and a groundplane on the back for EMI shielding. Build Larger SMD circuits on Proto-Chip, than on the other SMD Protoboards available! No other board has the features of Proto-Chip! Except the BIG Brother to this one - Proto-Chip n' DIP 2, on website below! NOW YOU HAVE A BETTER WAY TO BUILD WITH SURFACE MOUNT DEVICES! Cut Proto-Chip board in half, for smaller projects, AND it is STILL larger than current available protoboards. Use it to make SOIC to DIP adapters. See the Proto-Chip Order page on the website below for a possible way to do this. Great for DIY Projects, EFX Pedals, Robotics, Interfaces, REWORKING MODULES, Amps, Radios, stereos, Hobby or computer projects, or any type circuit that uses SMD components. Why use a little stamp sized board for 1 chip, when you can build your whole project on 1 Board? See the link to website below for more info and order some for your workbench, or company. Check out the Basic Soldering, and Capacitors Articles, TUBE AMPS NOW BEING HAND BUILT, The new HUGE SUPER LINKS pages, email me on interests, ideas, NEW boards you want to see built, or views on other products, etc. I also do PCB Layouts for prototype boards for a LOT less than other shops charge. Email me for a quote. send me email: tammiehorton@machine--tools.com (please look at our rules and privacy policy) |
