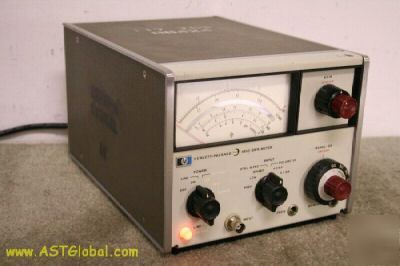

* The 415E SWR Meter is a low noise, 1000Hz tuned amplifier and voltmeter, calibrated in dB and SWR. Designed for use with square law detectors, SWR attenuation and gain measurements are made easily and read directly from metered scales. Can also be used as a tuned amplifier for driving an X-Y recorder when making RF substitution measurements. The 415E has two outputs located on the rear-panel: a recorder output with 0 to 1 VDC into an open circuit and an AC amplifier output of 0 to 0.3 V rms (NORMAL mode), 0 to 0.8 V rms (EXPAND mode). The 415E has an internal precision 60 dB attenuator allowing it to operate over a 70 dB range in 2 or 10 dB steps. The sensitivity is 0.15 µV rms for full scale deflection at maximum bandwidth (1 µV rms on high impedance crystal input). The bandwidth is continuously adjustable from 15Hz for maximum sensitivity to 130Hz. * FOR YOUR "PEACE OF MIND" and CONVIENENCE any TESTED and FUNCTIONAL TEST EQUIPMENT WE LIST CAN BE CALIBRATED for an ADDITIONAL CHARGE by AST GLOBAL'S OWN IN HOUSE CALIBRATION LAB. Note: Email or call for Calibration Quote. * Unit has been THOROUGHLY CHECKED by our CERTIFIED LAB TECHNICIAN and is FULLY FUNCTIONAL. * EXCELLENT COSMETIC CONDITION. * This Unit Comes with a 5 Day Right of Return. * Power cords, accessories, probes, manuals, software, etc. are not included unless specifically stated. If after reading the entire text, the item description, and clicking on our links and your question still is not answered, please use the Ask Seller A Question link above. Using our regular email address will cause delays in answering your question. * ACCESSORIES: Power cords, accessories, probes, manuals, software, etc. are NOT included unless specifically stated. Money orders, cashier checks, bank drafts Wire transfers (please add a $15.00 banking fee) Postal international money orders (please add a $7.50 banking fee) Wire transfers (please add a $15.00 banking fee) Postal international money orders (please add a $7.50 banking fee) Wire transfers (please add a $15.00 banking fee) RETURNS, EXCHANGES AND WARRANTY: Please feel free to call us toll free (within Continental US) at 1-(***)-216-7159 or (outside Continental US) at 1-(***)-337-6674. Our regular business hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. EST. (please look at our rules and privacy policy) |
