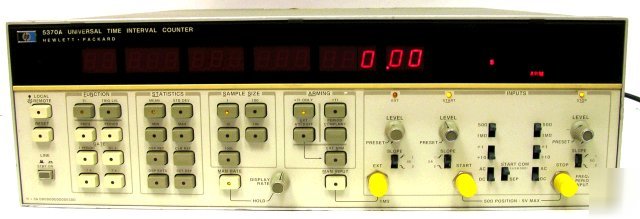

HP Agilent 5370A 100MHz Universal Time Interval Counter This is a used unit, with various small scratches, and excellent operational condition. Unit comes as shown, no other accessories are included. Click the link below for the data sheet. Manufacturer's Specifications/Features: (Please note that not all features may be included in this item) Complete with HP-IB, this unit will make frequency, period, multiple period averaging, time interval and time interval average measurements. Statistical functions allow more complete characterization of time intervals. In addition to the mean, both the max and min within a selected sample size are available as well as standard deviation. * The Agilent HP 5370A Universal Time Interval Counter will cover the frequency range of 0.1Hz to 100MHz. * Sensitivity is 100 mV p-p, 35 mV rms sine wave x attenuator setting. * Impedance is selectable 1 Mohm / 30 pF or 50-ohms. * Switch selectable coupling AC or DC. * Preset dynamic range at 50-ohms x1: 100 mV to 1 V p-p pulse; x10: 1 V to 7 V p-p pulse, at 1 Mohm x10: 100 mV to 1 V p-p pulse; x10: 1 V to 10 V p-p pulse. * Resolution of +/-20 ps on time interval measurements. * Digital display is 16 digits with suppressed leading zeroes. ANOTHER GREAT DEAL FROM TECHRECOVERY! Item #: PWH02938-11-06 - 16L60 * Test equipment with calibration comes with a 100 day guarantee from defects and 10 day right of return. * At TechRecovery, your complete satisfaction is our goal. If you have any questions, don't hesitate to call us at (***)-738-5201 with questions. (please look at our rules and privacy policy) |
