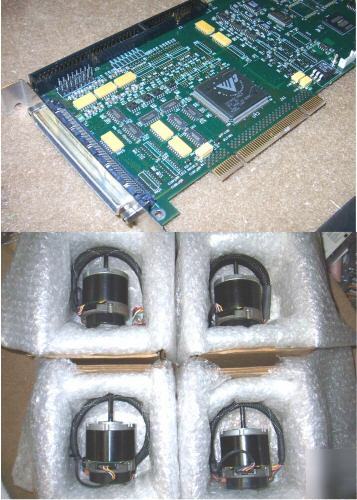

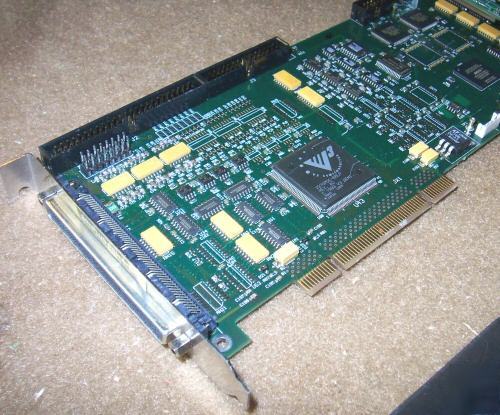

FIRST THE 4 AXIS PCI MOTION CONTROLLER. THE MODEL IS SPiiPlus PCI FROM ACS MOTION CONTROL INC. PLUGS INTO DESKTOP PC'S PCI SLOT. SOME DATA SHEET INFO - SUPPORTS AC SERVO, DC BRUSHLESS AND BRUSHED AND STEPPER MOTORS. SOME OF THE I/O IS +- 10V ANALOG OUTPUTS 16 BIT RESOLUTION, DRIVE FAULT, ENABLE, PULSE DIRECTION, LIMITS. TOO MUCH TO LIST HERE SEE THE DATA SHEETS. THE ASC WEBSITE IS EXCELLENT AND VERY COMPLETE. ALL DOCUMENTATION INCLUDING DATA SHEETS, DRIVERS, SOFTWARE, USER GUIDES, TRAINING PRESENTATIONS, TECHNICAL PAPERS ETC CAN BE FOUND AT /pages/download_content.asp?intGlobalId=6 (NOTE: YOU WILL NEED TO REGISTER AT THE WEBSITE. AFTER SELECTING THE DOCUMENT JUST ENTER ANY INFO ON THEIR SIGN IN PAGE TO GET THE FILES). OR I CAN EMAIL THE PDF DATA SHEET FILE TO YOU. BOARD IS FULLY FUNCTIONAL PULLED FROM A WORKING SYSTEM. ESD PROTECTED PACKING. NEXT 4 DC BRUSHLESS MOTORS TEKNIC MODEL M2330. NEMA 23 MOUNTING. 0.25 DIA SHAFT. INPUT VOLTAGE 20 TO 90V DC. INPUT CURRENT 7.6 AMPS RMS. 160 OZ-IN TORQUE PK. INPUT ENCODER 2000 CPR. APPROX 3 INCHES LONG X 2.5 IN DIA. ALL IN EXCELLENT CONDITION. I WAS NOT FORTUNATE TO GET ANY OTHER MISC PARTS OR EQUIPMENT SUCH AS CABLES, SCREWS, PRINTED MANUALS ETC. ALL THE DOCUMENTATION AND PARTS ARE AVAILABLE AND UP TO DATE ON THE TWO COMPANIES WEBSITES. (please look at our rules and privacy policy) |
billy-church@machine--tools.com (Billy Church) for additional information. This email is used for forwarding to newsgroup user.
