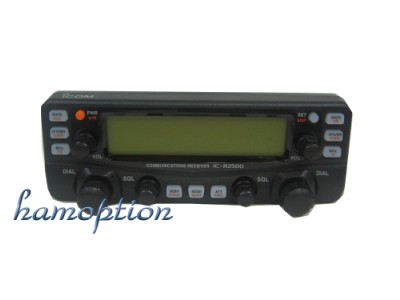

ICOM IC-R2500 Unblocked Digital Receiver P25 Optional Warranty: 1 Product code: ICOM IC-R2500 EXP * R2500 unblocked Digital PC receiver unit(Optional UT-122 function can receive P25 many police band) * Windows 98SE/ME/2000/XP PCR1500/PCR2500 software CD * Original English Operation Manual Dualwatch, Digital Mode, Diversity Receiver The IC-R2500 has dualwatch receive capability*1, allowing you to receive two bands simultaneously. It covers 0.01–3299.999 MHz in AM, FM, WFM, SSB, CW, DV*2 and P25*3 modes on the main receiver, while the sub-receiver covers 50–1300MHz in AM, FM and WFM modes. *1 Two antennas are required for dualwatch receive. The diversity receive* mode is useful for mobile operation where the received signal changes continuously. It compares the signal strength and chooses the antenna with the better signal to maintain good sound and receive quality. * Two antennas are required. Available in FM/DV/P25 mode between 50– 1300MHz only. Diversity reception is not available while using dualwatch. Wide LCD display for independent band control The wide LCD display shows both main/sub receiver settings in an easy-to-read symmetric side-by-side layout. The controller provides separate tuning, volume, squelch knobs and function buttons for the left (Main) and right (Sub) receivers. The LCD backlit color is selectable between amber and green for your preference. The optional UT-118 D-STAR digital unit and UT-122 P25 digital unit provide the latest digital mode reception. Catch the action in digital communications! (The P25 mode is used in many country for digital Police, emergencies, safety and security ) 1000 alphanumeric memory channels With Icom’s Dynamic Memory Scan, DMS, you have a versatile memory channel management system at your command. The 1000 memory channels can be arranged by service or personal preference in the 21 memory banks. Selectively link the channels together to scan depending on your needs. Programming the memory channels and 6 character memory names is simple with your PC. * Optional DSP capability with UT-106 * VSC (Voice Squelch Control) ignores unmodulated signals or heterodynes * IF filter selection for changing IF filter width * Noise blanker eliminates pulse type noise (SSB, CW, AM mode only) * AFC function automatically follows an FM signal when the signal’s frequency drifts * IF shift function (SSB, CW mode only) * 30 min – 2 hour auto power off timer * CTCSS/DTCS tones and duplex mode operation for monitoring a repeater * RF attenuator attenuates 20dB (approx.) (below 1300MHz) * All IC-PCR2500 functions are available when connected to a PC * Cloning function allows you to read/write memory contents from your PC. Sharing data with IC-PCR2500 is also possible. *3 Optional UT-122 required. P25 mode is used in safety, public band by many police. Frequency only up to 760MHz. * Mode: WFM, FM, AM, LSB, USB, CW (LSB/USB/CW to 1300 MHz only) * Number of Memory Channels: Up to 2600 channels per file (number of files created is up to the user) * Antenna Connector: Two BNC (50 ohm) * Useable Temperature range: 0° C to +60° C; 32° F to 140° F * Frequency Stability: ±3 ppm at 25° C * Frequency Resolution: 10Hz (minimum) * Power Supply Requirements (negative ground): 12 V DC = ±15% for receiver unit or supplied AC adaptor * Dimensions (projections not included): * 5.75(w) x 1.7(h) x 8.2(d) inches [146 x 41 x 206 mm] * Receive System: Triple Superheterodyne * Intermediate Frequencies Main & Sub Band: * WFM/AM >50 kHz/-6 db (typical) ** 28-49.999 MHz. SSB, CW BW=2.8kHz, AM BW=6.0kHz at 10dB S/N FM BW=15kHz, WFM BW=230kHz at 12dB SINAD * Audio Output Impedance: 4 - 8 ohms * Max. Audio Output: 500 mW (at 10% distortion with an 8 ohm load) * External Speaker Jack: 3.5 mm 2 conductor (mono) 8 ohm * Packet Jack: 3.5 mm 2 conductor (mono) 100 Kohm * IF Shift Variable Range: ± 1.2 kHz * Specifications are subject to change without notice. * Microsoft ® Windows ® XP/2000/ME/98SE * Intel ® Pentium ® III 450MHz or faster * Minimum 50 MB of free space on hard drive * Minimum 128 MB of memory (256MB or more recommended) * Display with 1024 × 768 pixel resolution, high color * CD-ROM or DVD drive is required for software installation 2.Bank wire transfer (requires an extra US$30 service charge) Increase your sales with MerchantRun's Cross-Border Trade Solution (please look at our rules and privacy policy) |
