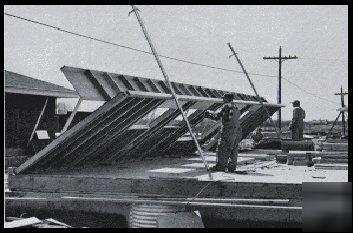

* Increase speed of construction * Designed to lift sheathed walls Cable: 5/32" galvanized aircraft cable. Winch: Standard two-way rachet winch. Operates similar to a bumper jack. It may be jacked down, one notch at a time until the load is removed, after which the cable may be pulled out freely. The Adjustable Wall Stop must be pre-set for the proper wall height. Various settings are listed on the decal. (Settings are approximately 1.45 times the wall height.) Lifting is accomplished by the ratchet winch. Loads may be raised or lowered by setting the up-down lever. Double Headed Nails secure the hinged floor plate to the subfloor. If on concrete, a plank may be extended to a solid object and used as a substitute. The plank must be secured to prevent it from slipping or lifting during the wall lift. Telescopes to the closed position for storage and hauling. (please look at our rules and privacy policy) |
