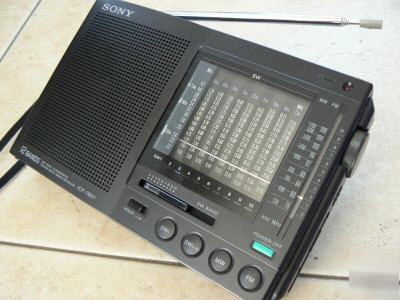

- Analog shortwave portable (dual conversion) - Frequency coverage: LW (ICF-7601L), MW, 120m-75m (ICF-7601), 60m, 49m, 41m, 31m, 25m, 22m, 19m, 16m, 13m, FM. - 1st IF for SW1-9/SW2-10 (60m-13m): 10.7 MHz (pretty much separate from the FM section BTW) - 2nd or only IF for AM: 455 kHz (120m-75m on ICF-7601, MW, LW on ICF-7601L: single conversion) - AM IF filter: Murata CFU class filter (4 elements) on 455 kHz plus a tuned IFT, two extra filters on the 1st IF of 10.7 MHz - FM IF filter: unknown, but there's only one (all the "digitals" along with the ICF-7600A(W) and probably the ICF-7600(W) as well use two, and Grundig's Satellits even used three, which was only topped by four or even five cascaded ones in top grade FM tuners), with the expected barn door selectivity - The ICF-7601L covered LW instead of the 120m-75m range found on the ICF-7601. Interestingly the latter uses the ferrite rod for the resulting SW1 range. - Output: 450 mW max @ 10% distortion Uses 4 AA batteries- INCLUDED. Item is in good condition, some slight scratches. Tested, guaranteed to work. (please look at our rules and privacy policy) |
