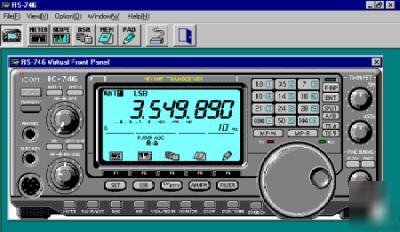

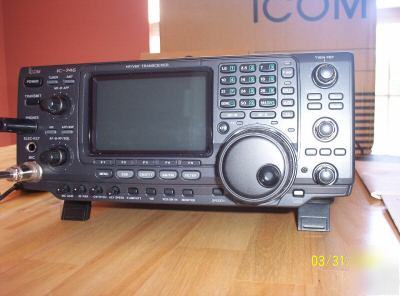

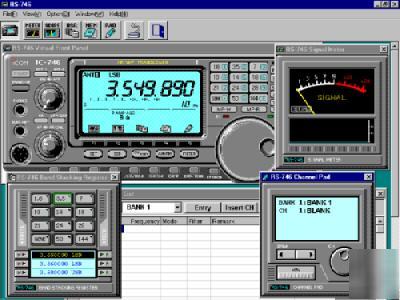

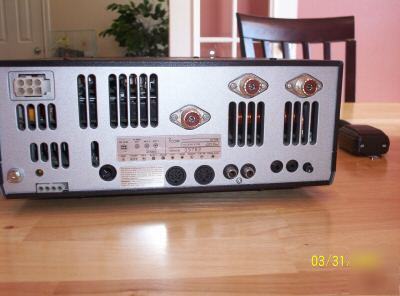

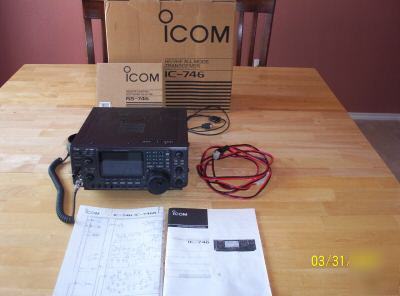

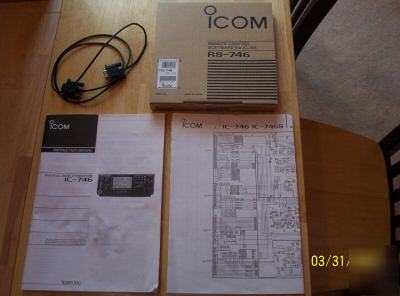

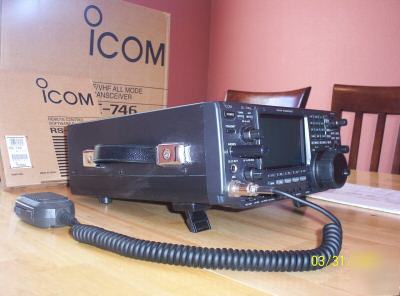

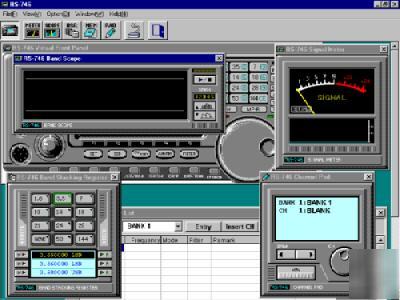

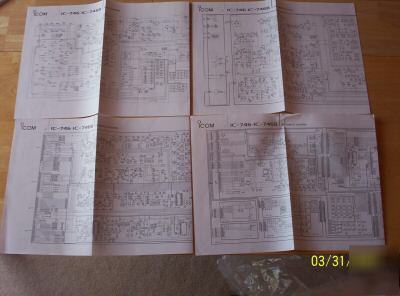

- Power cable (No power supply) - Original Manual and Schematics - IC-746 Software for connecting the radio and controlling it from your PC This rig covers 160-10 meters plus 6 and 2 meters. 100 Watts of output is available on all bands - HF, 50 MHz and 144 MHz, making the IC-746 a practical choice for all-around base station use. The die-cast aluminum chassis and a large cooling fan help to stabilize the PA circuit, providing 100% full duty cycle operation. It has 100 alphanumeric memories, spectrum display, Twin PBT, CTCSS encode/decode, APF, two stage preamp, automatic antenna tuner and electronic keyer. DSP digitally transposes receive audio components in all modes of operation to produce desired AF frequency characteristics at the IF stage of the transceiver. This built-in DSP provides: noise reduction, automatic notch filter and selectable APF. The digital bar graph meter displays ALC, power output and SWR simultaneously. The radio automatically selects from the three separate antenna inputs (HF, 6 meters, 2 meters). A built-in automatic antenna tuner operates on the HF bands plus 6 meters. The 746 requires 12 VDC at 20 amps. The IC-746 comes with HM-36 hand mic, DC power cable and key plug. 11.3x4.8x12.5 inches. 20 Lbs. http:// /downloads/manuals/amateur/ic-746.pdf http://www.eham.net/reviews/detail/176 * Built-in Automatic Antenna Tuner 180-6 Meters The screenshot here reveals every sub-screen of the RS-746 software. band scope, s-meter, channel pad and band stacking registers. The memory list is in the background. All three frequencies are visible on the band stacking register screen without the need to push the band button three times. Band scope screen mirrors the scope on the IC-746's LCD display. Finding activity on the bands is as easy as clicking on a signal displayed on its graphical spectrum analyzer. The IC-746 will automatically tune to that frequency. Managing IC-746 memory channels becomes a breeze with the RS-746 memory management screen. Not only that, but by storing memory channels in a file on your computer's hard disk, you can increase the number of available memory channels to 1000! That's 10 memory banks with 100 memories each. Entering alphanumeric memory names also becomes a lot easier. You can simply type the names into the channel pad shown on the far right. Or, enter the names directly into the main channel list along with the frequency, operating mode and filter settings. Channel list is shown in the background. The use of the RS-746 program requires Microsoft® Windows® 95, 98 or ME, Pentium® 100 MHz or faster processor, at least 16 MB of RAM and 20 MB of free hard disk space. RS-232C serial port is needed to connect the radio to the PC. The connection cable, the OPC-662, is included with the RS-746 software package. (please look at our rules and privacy policy) |
