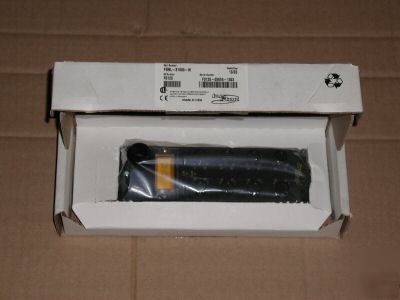

interlinkBT / Turck Busstop Input Module #FDN-S1600-W * For high density applications * For use with eight 4-wire sensors or 16 3-wire sensors through input splitters * PNP short-circuit protected inputs Glass-filled nylon housing with nickel plated brass connectors Automatic detection of network communication rate * Internal current consumption < 50 mA (at 24 VDC) plus sum of sensor currents (from bus power) (16) PNP 3-wire sensors or dry contacts * Input voltage (V +) 13-26 VDC (from bus power) * Input short circuit (V +) 700 mA - 2.0 A (total) * Input signal current ( I ) OFF < 2mA, ON 3.0 - 3.4 mA at 24VDC * Flashing Green: Detecting Autobaud Rate * Flashing Red: I/O Short-circuit * Address 0-63 via node address switches * Internal Setting Address from internal EEPROM (rotary switch must be in PGM position) * Device Net Identity Attributes: * Product type / code 7 / 2001 (7D1 hex) Size: (millimeters) 197 x 60 x 40 (H x W x D) * Material: Glass-filled nylon, nickel plated brass con nectors * Mounting: 4 through-holes, 4.5 mm diameter * Enclosure: NEMA 1, 3, 4, 12, 13 and IEC IP67 Operating temperature -25° to +70°C (-13° to +158°F) For more information contact Lenny at (***) 887-7538 (please look at our rules and privacy policy) |
