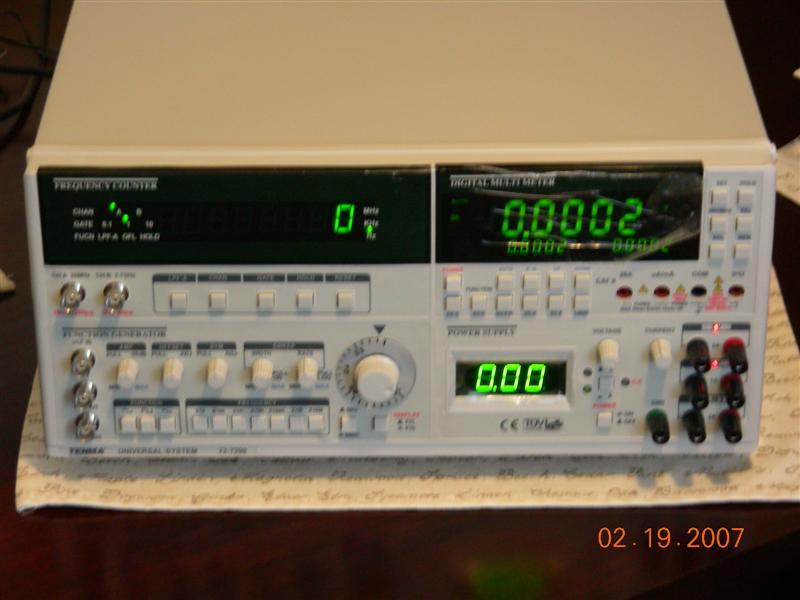

TENMA 72-7290 Universal Test System If you have any questions please feel free to e-mail me with your questions, I will be checking my e-mail account first thing in the morning. So if you leave it during the day it may be the next morning before you get a response. Universal Test System DMM Plus Power Supply/counter/generator 72-7290 - Universal Test System DMM Plus Power Supply/counter/generator The Tenma Universal Test system combines four of the most commonly used pieces of test equipment into one economical unit. Designed for service, design and education. Features: Triple output power supply – True RMS 40,000 count digital multimeter - Measures AC/DC voltage, current, resistance, capacitance and provides logic test - 10MHz function generator - Sine, square, triangle, skewed sine, ramp, pulse and TTL output - Frequency counter - Channel A: 1Hz~20MHz, Channel B: 20MHz~2.7GHz - Power requirements: 120VAC, 60Hz - Dimensions: 61/2" (H) x 141/2" (W) x 121/2" (D) Specifications Frequency Counter Channel A: 1Hz~20MHzChannel B:20MHz~2.7GHzMaximum input voltage Input impedance Channel A: 1MohmChannnnnhannnannannel B: 50ohmTime base0.1, 1, 10secFunction Generator General frequency 1Hz~10MHz in 7 ranges VCF voltage level0~10VDC Output impedance Selectable 50, 600ohm ±10%Output amplitude2V~20V p-p (open) 1V~10V p-p (50ohm load)Power Supply Output 10~30V @ 0~3AOutput 2Fixed 5V @ 2AOutput 3Fixed 15V @ 1ARippleOutput 1 (1mV) 2 (2mV) 3 ( 2mV) Max. Digital Multimeter Accuracy DC volts400mV~1000V±0.2% +3 digits AC volts 400mV~750V ±1.0% +10 digits AC/DC current40mA~20A± 0.8% +5 digits±1.5% +10 digits Resistance 400ohm ~ 4Mohm ±0.2% +10 digitsCapacitance40nF~200uF±3.0% +5 digits Continuity<40ohmLogic Test current 100 Output 1 (1mV) 2 (2mV) 3 (2mV) Max. (please look at our rules and privacy policy) |
