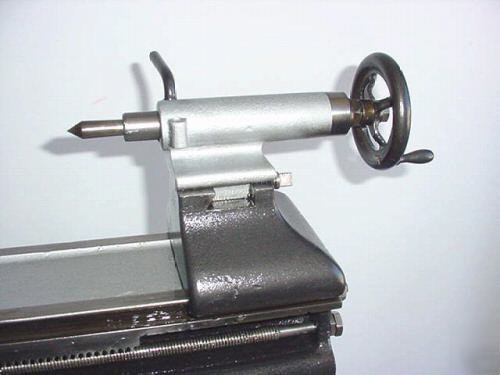

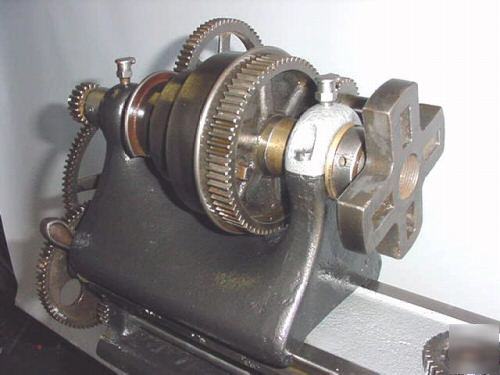

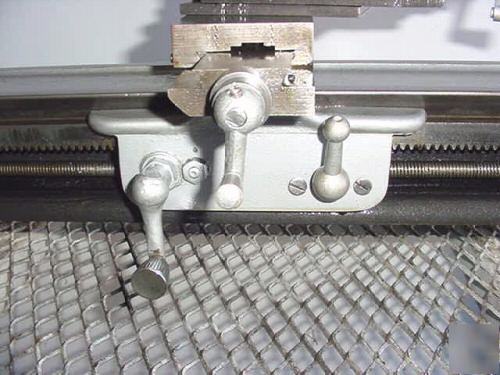

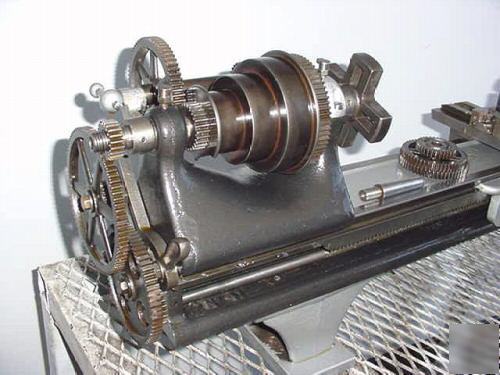

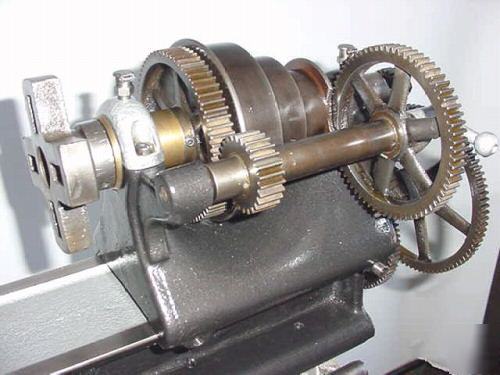

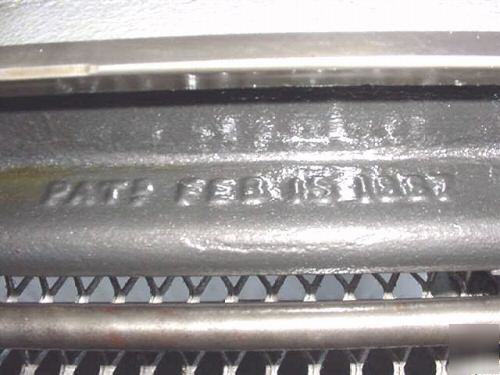

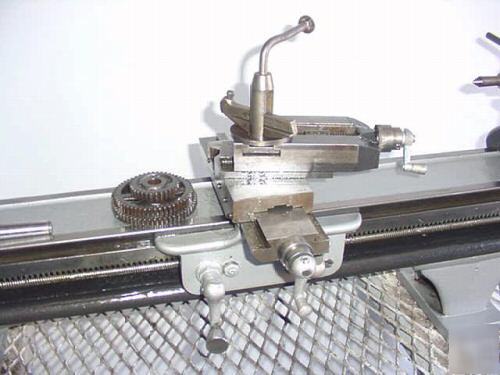

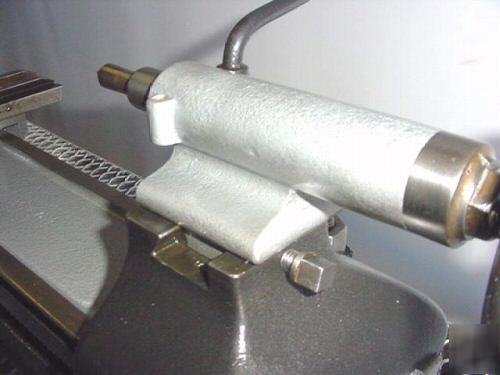

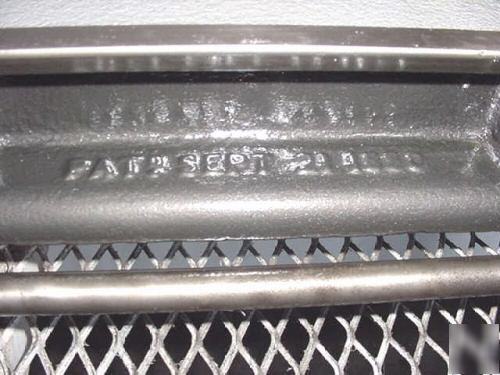

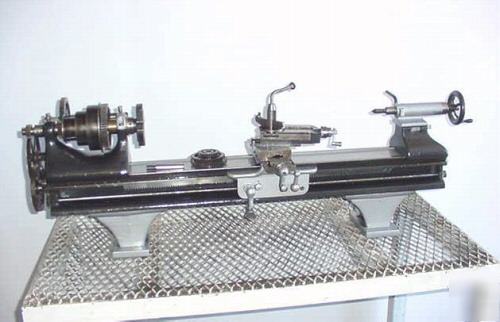

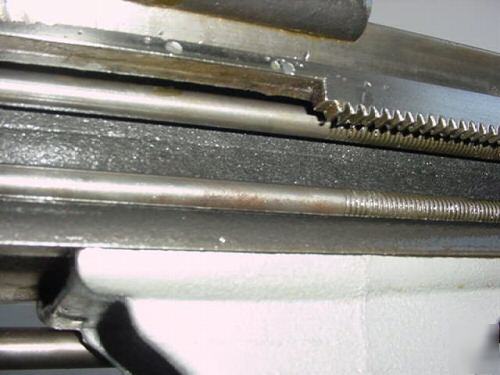

* Barnes Velocipede Screw Cutting Lathe * Overall Length of Ways are 40-1/8" Including Headstock area * Patent Dates on machine are 1880 and 1887 * Feeds Right or Left and Cuts Screws Right or Left using Twin Feed Screws and a semi screw to engage one or the other feed screws at a time * Equipped with Following Gears Sets on the machine (from left to right) 20T/88T, 20T/72T, 70T/26T and 26T/70T * Also supplied with 32T / 52T / and 56 Tooth Change Gears * Manufacturer's information stated it will cut all ordinary threads from 5 to 48 and miscellaneous threads up to 154 TPI * Tailstock Adjustable for Taper Turning and includes a #1 Morse Center * Spindle Nose Taper is #2 Morse and includes #2 Morse Threaded Center * Through Hole measures approximately 455" Diameter See manufacturer's information @ http:// /smma/barnes/b9.htm Any questions e-mail or call Brandon @ (***)-580-4794. Please include item number in all correspondence. See other items in our e-Bay store. Be sure to add me to your favorites list! (please look at our rules and privacy policy) |
