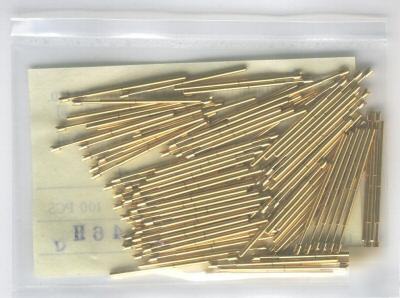

This 4-Point Crown Tip are good for Lands, Pads Leads or Pated Though Holes - Self Cleaning. Wire wrapped ready receptacles are convenience for fast fixture setup . (**** becareful the diameter of plunger and holder) These two items come with sets. RL75-CRW-34 Receptacle (Test Center 75 mil) Materials: Phospher Bronze or Brass, Gold Plated Receptacle fit for PL75 series or pogo pin with diameter 1.02mm (40mil) Connection : Wire Wrapped ,Tail with 30 AWG 34†insulated silver plated conductor Recommended Mounting Holes Size : 1.35mm PL75-V-4G pogo pin (Test Center 75mil) Good for Incircuit test or any electronic product testing PL75V-4G & RL75-CRW-34 are test set pair and wire wrapped ready for quick connection and easier set up fixture. Contact Barrel : Brass, Gold Plated, Spring : Stainless Steel Wire Gold Plated Plunger : Full-Hard Beryllium Copper or SK Material, Rhodium Plated over Nickel (Or Gold Plated Over Nickel) Current Rating : 3 amps, continuous Contact resistance: 50 milliohms This 4-Point Crown Tip are good for Lands, Pads Leads or Pated Though Holes - Self Cleaning. Wire wrapped ready receptacles are convenience for fast fixture setup . (**** becareful the diameter of plunger and holder****) These two items come with sets. If you want the other Tip types and any other combination of those for more convenience to your application, you can specify which type or option number in your Pal Pal Instruction. You may choose any different combination. The prices are the same with no additional charge. If you need more quantity please request by email. 100 pieces PL75-V-4R (crown tip) pogo pin & 100 pieces RL75-CRW-34 RL75-CRW-34 Receptacle (Test Center 75 mil) Materials: Phospher Bronze or Brass, Gold Plated Receptacle fit for PL75 series or pogo pin with diameter 1.02mm (40mil) Connection : Wire Wrapped ,Tail with 30 AWG 34†insulated silver plated conductor Recommended Mounting Holes Size : 1.35mm PL75-V-4G pogo pin (Test Center 75mil) PL75V-4G & RL75-CRW-34 are test set pair and wire wrapped ready for quick connection and easier set up fixture. Materials: Contact Barrel : Brass, Gold Plated, Spring : Stainless Steel Wire Gold Plated Plunger : Full-Hard Beryllium Copper or SK Material, Rhodium Plated over Nickel (Or Gold Plated Over Nickel) Current Rating : 3 amps, continuous Contact resistance: 50 milliohmsRated Stroke : 2.54mm (0.1")Spring Force : 4 oz 100 pieces PL75-B-4R (spear tip) & 100 pieces RL75-CRW-34 100 pieces PL75-H20-7G (serrated tip) pogo pin & 100 pieces RL75-CRW-34 PL75 inserter K-4R and RL-75 - CRW-34 1 piece PL75 inserter & 25 pieces RL75-CRW-34 1 piece PL75 extracter & 25 pieces RL75WW 1 piece PL75 inserter & 25 pieces RL75WW 100 pieces PL-75-B-4R (spear tip) pogo pin and 100 pieces RL-75WW receptacle 100 pieces PL75-V-4R (crown tip) pogo pin and 100 pieces RL-75WW receptacle 100 pieces PL-75-K-4R (spear tip) pogo pin and 100 pieces RL-75WW receptacle (please look at our rules and privacy policy) |
