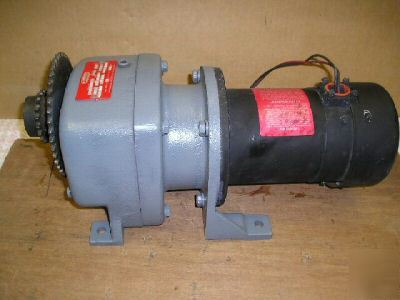

Dayton gear drive with Dayton DC Motor. Drive: Model- 2Z934A, S.F.-1, Input Hp Max- ½, Output Torque- 478 in.lb., Input Speed- 1725 RPM, Output Speed- 59 RPM, Ref# 200357AA881. Shaft is 1" x 2" long and is keyed. Comes with dual sprocket gears, 5.75" and 2.5" diameter. Motor: Dayton Permanent Magnet DC Motor, Model- 2M167C, Hp- ¼, RPM-1725, Armature Volts- 90 VDC, Armature Current- 3.0 Amp, Form Fac.- 1.3, SF-1, 40 deg. C Amb., NEMA Frame- 56C, Ref# 46183352543-1A. Rotation can be reversed by interchanging A1 and A2 leads. At the base of the drive are 4 mounting holes. Overall dimensions- 17" x 7" x 8" high. Drive and motor are clean and in good working condition. For questions please send email to: e-morgan@machine--tools.com Click to view supersized image Click to view supersized image Click to view supersized image Smart Services for Smart Sellers (please look at our rules and privacy policy) |
