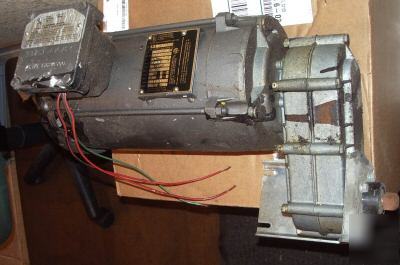

Your are viewing a used in working condition Baldor 1725 RPM XPFC explosion proof fan cooled electric motor for hazardous locations, 115-230 VAC 10.6/5.3 amps, single phase 60 Hz motor and gear reducer; the motor output RPM is 1750 and the reducer output RPM is unknown. There is a mounting base on the reducer which serves as the mounting platform for the complete unit. Motor spec is 35E-371-526 , cat no VL5007A , 56C frame, 1.0 SF at 40C ambient cont, F Z2507380 , * Corrosion resistant epoxy finish * Positively locked drive end bearing * U.L. approved cast conduit box-standard * 1.00 Service Factor * U.L. and CSA approved for Class I, Group D or Class II, Group F & G Full Load Torque: 2.25 LB-FT Break Down Torque: 6.5 LB-FT 289 % of F.L. Torque Locked Rotor Torque: 7 LB-FT Starting Current(Amps): 34 No-Load Current(Amps): 4.4 Line-line Resist. @ 25° C: 2.84 A ph 1.57 B ph Temp Rise, C @ FL (in deg): 64 LOAD CHARACTERISTICS - TESTED % of Rated Load 25 50 75 100 125 150 S.F. Power Factor: 32 45 56 65 72 78 0 Efficiency: 42.5 58.2 65.4 68.7 69.9 69.6 0 Speed (RPM): 1784 1771 1757 1742 1724 1704 0 Line Amperes: 4.45 4.65 5 5.45 6.05 6.75 6.05 APPLICATIONS included * Pumps, blowers, valves, etc. I also have a NEMA 4 enclosure listing which came with this unit and appears to be a push button start / stop control which was used for this gearmotor combination. It is listed separately. Thanks for viewing and be sure to see my other listing for many more items.
