Open-frame unit for mounting in a panel type enclosure. Adjustment of 'Ramp Time' 'Pedestal Voltage'and 'current limit' via potentiometers P1, P2 & P3 mounted on circuit board. The control terminals S1/S2 enable electronic control of the motor. Unit can be wired permanently to a three phase supply and the soft-start initiated by linking contacts S1 and S2. This can be done either via a switch or via a relay which may be the relay output of a PLC, BUT it must be a 'volt free' contact. Alternatively S1 and S2 can be left permanently connected and the softstart and motor switched on by switching power to the softstart. For example where a motor is already fitted and switched via a control unit or a set of contactors the softstart can be added between the control gear and motor without any further alteration to the control system. Width: 268mm - Top to Bottom: 154mm - Height [stand-off from wall]: 85mm Unit has been stored carefully. Immaculate condition and full working order. Unit has also been tested in the last month. Any questions - Carissa_hays@machine--tools.com Electrical installation and servicing work should always be carried out by a competent and qualified electrician. The information given above is presented as a description of the item and it's suggested use. It is not in any regard a guide to installing this item. Please refer to the given manufacturers pdf file when making decisions relative to the your intended application. "WARNING" - Misuse or misapplication of products may cause explosion, electric shock, fire, personal injury, property damage or trauma to hamsters or other small mammals. All of the products we offer are for users having technical expertise. It is important that you analyze all aspects of your application and review the technical information concerning the product or system. Due to the variety of operating conditions and applications for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance, safety and warning requirements of the application are met. etc,etc. Yadda, yadda yadda. For any other information or advice do not hesitate to contact me. rapid delivery, fastest ever.. good communication.. Many thanks to you :-) A really great seller. Helpful and fast to supply really top class items Great stuff, the goods arrived quickly and in perfect condition. Recommended. exactly what I wanted ,super service and accurate description ,would recommend Thanks for your interest in this listing, Chris. (please look at our rules and privacy policy) |
Carissa_hays@machine--tools.com (Carissa Hays) for additional information. This email is used for forwarding to newsgroup user.

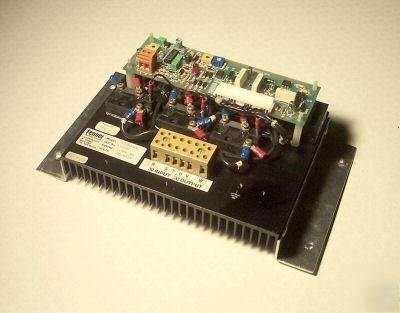

![3-phase 1.5KW softstart soft start [~inverter/drive ]](/By-Type-/Welder-/3-phase-1-5KW-softstart-soft-start-inverter-drive-img.jpg)
