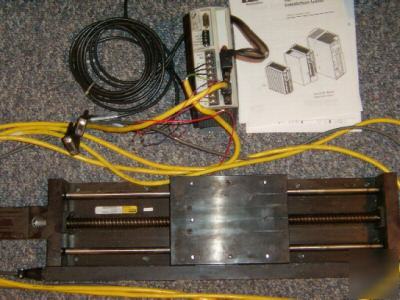

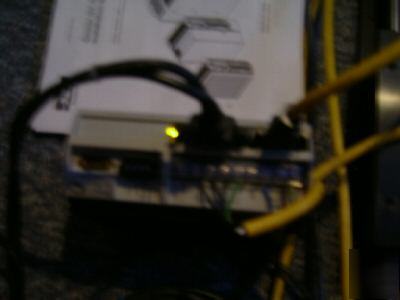

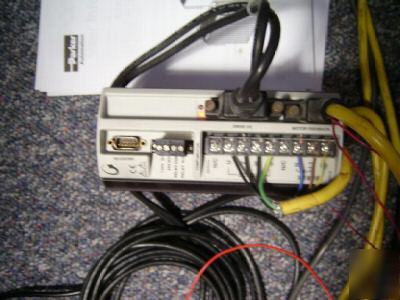

Compumotor GV-L3E Motion Controller & Servo with Ball Screw Driven Linear Table (Gently Used) The Gemini GV Digital Servo Drive The Gemini GV is a compact, low-cost, digital servo drive Performance * Five power levels for low-mid applications, digital notch filters * Torque, velocity, step & direction (cw/ccw), and encoder tracking modes available * Digital notch filters provide the tools to eliminate * Simplified tuning and configuration * Variable resolution for the encoder out as well as the command input * Wide range of PWM frequencies for linear motor support * Short circuit protection - phase-to-phase and phase-to-ground * Brownout protection - if AC drops below 85 VAC * Over temperature - shutdown occurs at ambient 131F (55C) * 24V Keep Alive (not required) - keeps logic alive if AC power is removed * Error Log - records 10 most recent errors with time stamp * Approvals: UL Recognition, cUL, CE (LVD), and CE (EMC) * Configurable via RS232/485 using Compumotor’s Motion Planner TM on a PC or Pocket Motion Planner TM on a Windows CE-based Palm PC SM Series Brushless Servo Motors Model CM-232AE-00588B W/24v brake on the motor * Five power levels for low-mid applications, digital notch filters * 0.8 to 11.3 lb-in continuous torque * High performance neodymim magnets * CAD (.dxf) drawings available 506 Round Rail Series Model 506016STES-D3L4C6M2E1W1 The 506 series tables are multi-functional linear tables used in industrial automation applications such as parts transfer fluid dispensing and light duty machining. These ballscrew driven linear tables are offered with English mounting. * Dimensions are: 24" length (excluding motor) 32 (including motor) 6" width 3" high * Table Dimensions are: 8" long by 6" wide * Life rating of 100 million inches * +/-0.0006 inch (+/- 15 microns)repeatability * Velocity up to 25 inches / sec * Cost-effective round rail bearing system * High efficiency (75%) rolled ballscrew drive * triggers and limits installed on the table (please look at our rules and privacy policy) |
