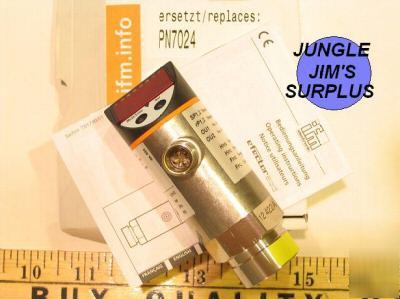

-12 TO +145 PSI DIGITAL READ OUT Aplication Type of pressure: relative pressure Liquids and gases Output normally open / closed programmable Operating voltage [V] 18...36 DC ¹) Short-circuit protection Yes (non-latching) Reverse polarity protection yes Overvoltage protection up to 40 V Permissible overl. pressure 75 bar 1087 PSI 7,5 MPa Bursting pressure min. 150 bar 2175 PSI 15 MPa Switch-on point, SP -0.90...10.00 bar -12...145 PSI -0.090...1.000 MPa Switch-off point, rP -0.95...9.95 bar -13...144 PSI -0.095...0.995 MPa in steps of 0.05 bar 1 PSI 0.005 MPa Programming options hysteresis / window function; N.O. / N.C; on delay, off delay; damping; display unit Temperature coefficients (TEMPCO) in the temperature range -20...80 °C (in% of the span per 10 K) - greatest TEMPCO of the zero point Switching frequency [Hz] 170...1 Delay time programmable dS, dr [s] 0; 0.2...50 Operating temperature [°C] -20...80 (UB < 32 V) / -20...60 (UB > 32 V) Medium temperature [°C] -25...80 Storage temperature [°C] -40...100 Protection IP 65 (IEC 60529) / (UL50), III (EN 50178) Insulation resistance [M] > 100 (500 V DC) Shock resistance [g] 50 (DIN / IEC 68-2-27, 11ms) Vibration resistance [g] 20 (DIN / IEC 68-2-6, 10 - 2000 Hz) Switching cycles min. 100 million EMC EN 61000-4-2 ESD: 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated: 10 V/m EN 61000-4-5 Surge: 0.5 / 1 kV EN 61000-4-6 HF conducted: 10 V Housing material stainless steel (304S15); stainless steel (316S12); PC (Macrolon); PBT (Pocan); PEI; FPM (Viton); EPDM/X (Santoprene); PTFE Materials (wetted parts) stainless steel (303S22); ceramics; FPM (Viton) (please look at our rules and privacy policy) |
