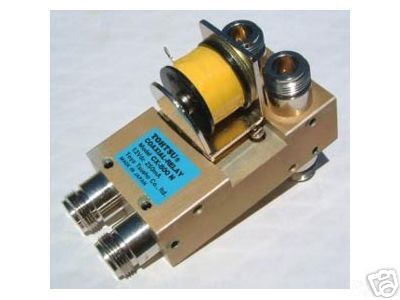

New Tohtsu CX-800N DPDT N type Coaxial Relay Pull in: 10 Vdc - 14 Vdc (12 Vdc Nominal) Current: 250 mA @ 12 Vdc at 20 degrees C Coil resistance: 48 Ohms +/-10% at 20 degrees C. Life Expectancy: 1,000,000. Operation min. Operational temperature: -50 to +70 degrees C. Cable connections: 6 N Type female connectors Frequency VSWR Isolation Ins.Loss IN PUT RF Power [MHz] [Max] [-dB(min)] [-dB(max)] [W] Nominal Voltage Voltage Range Resistance Ohms 12Vdc 10Vdc - 14Vdc 48 Ohms +/-10% at 20 degrees C. 24Vdc 19Vdc - 26Vdc 192 Ohms +/-10% at 20 degrees C. 26.5Vdc 20Vdc - 30Vdc 245 Ohms +/-10% at 20 degrees C. (please look at our rules and privacy policy) |
