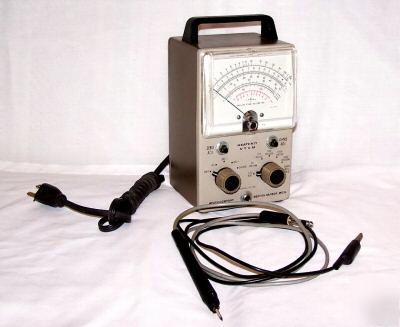

Heathkit IM-18 VTVM with Probe and Manual Refurbished, tested, calibrated and guaranteed · Fully tested and calibrated · Meets all original specifications · Includes Heathkit dc-ac/ohms probe with ground lead This instrument comes with a matching Heathkit dc-ac/ohms VTVM Probe with ground lead, as shown in the photo. Also included is an excellent instruction manual that is: · An all new manual, not a reproduction or copy · In booklet format, opens flat · High quality printing on 24 lb. bright paper · Has complete maintenance and calibration instructions · Has clear, easy-to-read schematic diagrams · Has complete component layout drawings Ranges 0 to 1.5, 5, 15, 50, 150, 500 and 1500 volts Input resistance 11 Megohms on all ranges RMS values of sine waves 0 to 1.5 volts on separate LOW-AC scale 0 to 5, 15, 50, 150, 500 and 1500 volts and complex waves 0 to 4 volts on separate LOW-AC scale 0 to 14, 42, 140, 420, 1400 and 4200 volts Input resistance and capacitance 1 Megohm, shunted by 60 pF (approx.) Frequency response 30 Hz to 3 MHz (source Z 100 ohms or less) 0 to 1000 Megohms in 7 ranges 10, 100, 1000, 10,000, 100,000, 1,000,000 and 10,000,000 Size 8.5 inches high, 5 inches wide, 5 inches deep (please look at our rules and privacy policy) |
