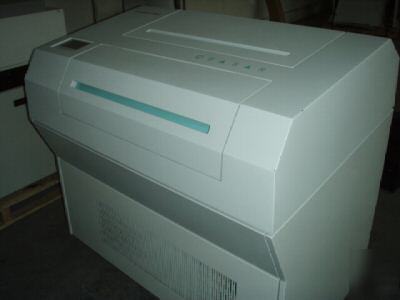

Precision internal drum laser reorder Heidelberg Press Compatbility: Automatic imagesetter system for outputting Quickmaster 46 format up to Speedmaster 52 format Laser diode, emission wavelength 670-680 nm Light beam deflected via a rotating, air-cushioned prism; inside drum 20.7" x 19.9" for positive imaging Resolution dependent from 21 to 11 microns Up to 200 lpi with 256 gray scale levels; Up to 400 lpi w/ Deltatechnology and I.S. +/- 0.2 mil over full format and eight successive films exposed consecutively, disregarding distorations in the photographic material caused by fluctuations in temperature and humidity Positive, negative, right-reading, wrong-reading Photographic materials in roll form Daylight load film and RC paper; polyester plates, 4-7 mil think for sensitive emission wavelengths of 670-680nm 11"-20.9" in increments of 1.2" Max. 197ft of 4mil thick photographic material Max. 100ft of 4 mil thick photographic material Bacher ‘Control 2000’ or Stoesser format head punch standard 90-132 Vac; 180-264 Vac; 47-63Hz SpeedWay interface a high speed interface for bitmap transmission and communications, interface; for connecting an online processor (please look at our rules and privacy policy) |
Fernando-hill@machine--tools.com (Fernando Hill) for additional information. This email is used for forwarding to newsgroup user.
