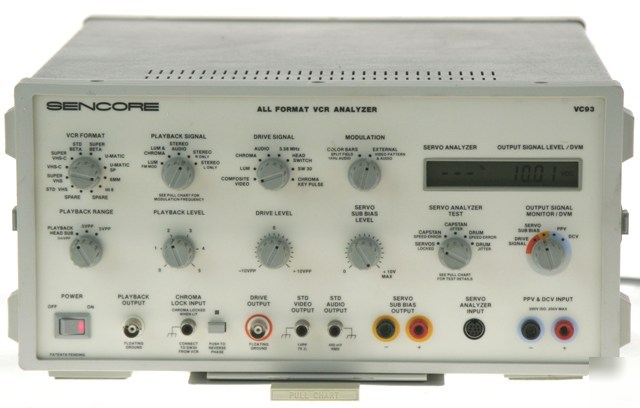

Click picture to see actual image size. Sencore VC93 All Format VCR Analyzer Cosmetic Condition: Good. Has only few small scratches on case. Testing Notes: Tested To Be In Working Condition. Accessories Included: Power Cord and Pull out Spec sheet. Sold: Five Day Right of Return. VC93 Condensed Specifications: All-format VCR analyzer Dynamic VCR head signal substituter for all formats * Exclusive Hi-Fi Stereo all-format head signal substituter Innovative VCR luminance, chroma, and audio analyzer * Complete all-format troubleshooting tool includes: - Servo bias supply * Standard video & audio line outputs * Autoranging DCV and PPV meter * Stand-alone analyzer or companion to the VG91 Universal Video Generator * Automatic servo analyzer (patented) * VC93 Condensed Specifications: Formats - VHS, Super VHS, VHS-C, Super VHS-C, Beta, Super Beta, U-MATIC, U-MATIC SP, 8mm, Hi-8, plus update capability. * General - Power: 105-130 VAC, 60 Hz. Size: 7" x 14" x 16.7" (17.9 x 35.8 x 42.5 cm) HWD. Weight: 15 pounds (6.8 kg). Digital Meter: 3 1/2 digit LCD readout for OUTPUT SIGNAL LEVEL/DVM plus 3 digit LCD readout for SERVO ANALYZER test. * Playback Signals - (For substituting before detectors) LUM (FM MOD): FM luminance-only portions of signals selected by VCR FORMAT switch. LUM AND CHROMA: FM luminance and chroma signals selected by VCR FORMAT switch. STEREO AUDIO: FM Stereo audio signals corresponding to VCR format selected by VCR FORMAT switch. STEREO R ONLY: Right channel only FM Stereo audio signals. STEREO L ONLY: Left channel only FM Stereo audio signals. * Playback Output Level - Continuously variable to 5 VPP in three ranges. * Playback Output Level - Continuously variable to 5 VPP in three ranges. * Chroma Lock - Phase-locks VC93 to the VCR to produce locked color. Input signal: SW30 from VCR. Input signal level required: Greater than 1 VPP. Chroma phase select: 0 or 180 degrees. Lock light: Lights when proper signal type and level received. * Drive Signals - All drive signals phase-locked to modulation source selected by the MODULATION switch. Signals Available: Composite Video, Luminance, Chroma, Audio, 3.58 MHz, Headswitch, SW30, and Chroma Key Pulse. * Drive Output Level - Continuously variable from -10 to +10 VPP. Frequency Response: Flat out to 4.5 MHz. * Modulation - Internal: Split field color bar pattern. Upper portion: 75% white, yellow, cyan, green, magenta, red, blue, and black. Lower portion: 100% white, black. Audio tone: 1 kHz sinewave. External: VG91 or VA62 Video Analyzer through 15 pin Sencore interface cable. * Servo Analyzer Tests - All servo tests results displayed as percentage indication to 0.01% resolution and GOOD/BAD indication. TESTS AVAILABLE: Servos Locked, Capstan Speed, Capstan Jitter, Drum Speed, Drum Jitter. * Servo Sub Bias - Continuously variable from 0 to 10.0 VDC current limited to 1 amp. Voltage Resolution: 0.01 V. * Standard Video Output - Level: 1 VPP ± 10% into 75 ohms. Impedance: 75 ohm ± 10%. * Standard Video Output - Level: 1 VPP ± 10% into 75 ohms. Impedance: 75 ohm ± 10%. * Standard Audio Output - Level: 400 mVRMS ± 150 mV into 10 kohm load. Output Impedance: Less than 1 kohm. * External Meter - DC Voltmeter: Autoranging in three ranges - 0.001 to 199.9V. Accuracy: 0.5% ± 2 digits. Peak-To-Peak Voltmeter: Autoranging in three ranges - 0.001 to 199.9V. Accuracy: 1% ± 4 digits at 1 kHz. Frequency Response: 0.001 to 19.99V - 15 Hz to 5 MHz ±1 dB; 20.0 to 199.9V - 30 Hz to 1 MHz ±1 dB. WE GUARANTEE ITEM CONDITION AS STATED UNDER "CONDITION" ABOVE. SELLER EXPRESSLY DISCLAIMS ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. * Most items have some cosmetic imperfections such as: scratches, dents, cracks, sticker residue, and discoloration due to normal wear and tear. Sales Tax of 8.8% is charged to all Washington State Purchases unless you present a valid tax exemption certificate. Items are not available for local pickup. If we find the item returned is not the item sent (different serial number or other identifying mark), we will consider that a fraud attempt and no refund will be issued. * We guarantee that the item will work only as described in the "Testing Notes" above. There may be an underlying problem(s) that we are truly unaware of and these are not covered. If you discover that the item received is not as represented in the "Testing Notes", you must notify us within 48 hours of receiving the item. Defective items will be replaced or repaired. A refund will only be issued if the item cannot be replaced or repaired. * Sales Listed "5 Day Right of Return ": (please look at our rules and privacy policy) |
