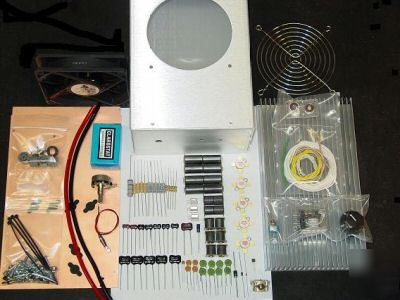

This package contains absolutely all the parts necessary to service the 650V+ amplifier. (The 650V+ is a 1 x SD1446 driving 4 x 2SC2879 amplifier) This package contains the following: 4.7Ω 2W Carbon Film Resistor 4 10Ω 1/2W Carbon Film Resistor 5 100~180 pf Silver Dipped Mica Capacitor 1 1000 pf Silver Dipped Mica Capacitor 4 .1 uf Ceramic Disc Capacitor 4 1000 pf Silver Dipped Mica Capacitor 1 120 pf Silver Dipped Mica Capacitor 5 .01 uf Ceramic Disc Capacitor 8 330pf Silver Dipped Mica Capacitor 2 22 uf Electrolytic Capacitor 1 10 pf Ceramic Disc Capacitor 1 Mica Compression Trim Capacitor 1 3A / 1000V PIV Silicon Rectifier 1 1A / 1000V PIV Silicon Rectifier 1 2SC28798 RF Power Transistor 4 NPN Switching Transistor / TO-92 1 ½â€ x ½â€ Ferrite Transformer Core 3 ½â€ x 1†Ferrite Transformer Core 1 ½â€ x 2†Ferrite Transformer Core 2 DPDT Relay 12V Coil /10A Contacts 1 Panel Mount SO239 UHF Connector 2 Pre-Drilled Copper Clad Circuit Board 1 Copper Clad Circuit Board 5-1/8†x 3/4†1 2 Position Pre-Cut Transistor / Pill Strips 2 4 Position Pre-Cut Transistor / Pill Strips 2 28†Length of #20 Silver/Teflon Wire 1 108†Length of #16 Silver/Teflon Wire 1 3†Length of #14 Silver/Teflon Wire 1 25†Length of #20 Hook-up Wire (Color 1) 1 18†Length of #20 Hook-up Wire (Color 2) 1 12†Length of #10 Red Power Cable 1 12†Length of #10 Black Power Cable 1 SHCS #4 40 x ¼â€ Socket screw 14 SHCS #6 32 x ¼â€ Socket screw 12 Pan Head Machine Screw #6 32 x ½â€ 8 Pan Head Machine Screw #8 32 x ¾â€ 4 Scrap circuit board material 1 (please look at our rules and privacy policy) |
