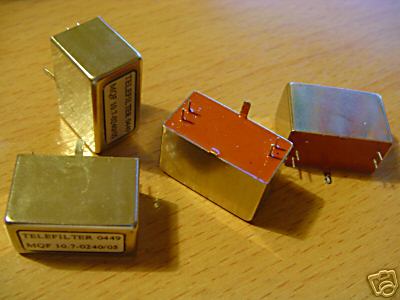

Ripple in passband: <2dB at +/- 0.90 KHZ Stop band attenuation: at +/- 3.3 KHZ >75dB Terminating impedance (in and out) R//C: 500 Ohms//20pF Dimensions: 23 x 12.2 mm (height 15.1mm) The filter was soldered in a test fixture. It was NOT USED, just measured once and then finished. But then un-soldered and one GND pin from the case cut. So I am selling it as USED. I hope it will find a good use. (please look at our rules and privacy policy) |
