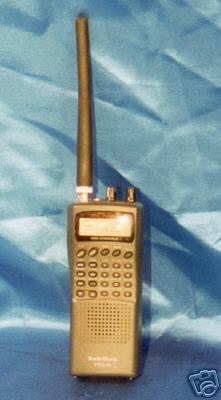

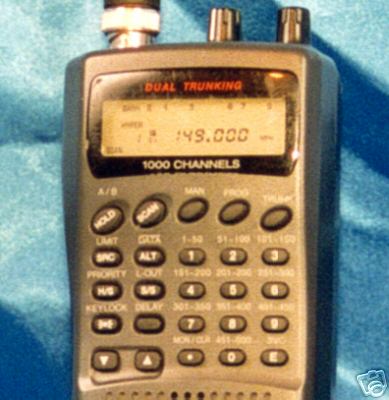

This item is in Good Working condition there are a couple small scratches on the Plastic View window on the front, but it does not affect the performance of the unit. Has Rubber Flexible Antenna, Vol, and Squelch knobs, headphone jack, and AC Power Adapter Jack, but Power Adapter is not included. PRO-94 1000-Channel Handheld Trunking Scanner (200-0524) Specifications Faxback Doc. # 57990 Frequency Coverage: ........................ 29-54 MHz - (in 5 kHz steps) 108-136.975 MHz (in 12.5 kHz steps) 137-174 MHz - (in 5 kHz steps) 216-224.995 MHz - (in 5 kHz steps) 406-512 MHz (in 12.5 kHz steps) 806.0000-823.9375 MHz (in 12.5 kHz steps) 851.0000-868.9875 MHz (in 12.5 kHz steps) 896.1125-956.0000 MHz (in 12.5 kHz steps) 1240.0000-1300.0000 MHz (in 12.5 kHz steps) Monitor Channels: ..................................................... 10 Numbers of Banks: ..................................................... 20 Sensitivity (AM/FM): FM: ....................................... 20 dB S/N at 3 kHz deviation 29-54 MHz: .................................................. 0.5 uV 137-174 MHz: ................................................ 0.5 uV 216-225 MHz: ................................................ 0.6 uV 406-512 MHz: ................................................ 0.5 uV 806-956 MHz: ................................................ 0.6 uV 1204-1300 MHz: .............................................. 4.0 uV AM: ........................................ 20 dB S/N at 60% modulation 108-136.9875 MHz: ........................................... 1.5 uV Spurious Rejection (at 40.84 MHz): ................................. 50 dB Selectivity (10 kHz): .............................................. -6 dB (15 kHz): ............................................. -50 dB If Rejection (at 162.4 MHz): ....................................... 80 dB Channels: ........................................................... 1000 Operating Temperature: ......... -4 to 140 degrees F (-20 to 60 degrees C) Scan Speed: ........................................... 50 Channels/Second Search Speed (Normal): .................................. 100 Steps/Second (Hypersearch): ............................. 300 Steps/Second (Service): ............................ 50 Frequencies/Second Priority Sampling: ............................................. 2 Seconds Delay time: .................................................... 2 Seconds IF Frequencies: ............................ 380.7 MHz, 10.85 MHz, 450 kHz Antenna Impedance: ............................................... 50 Ohms Audio Output: ............................................. 350 mW maximum Built-in Speaker: ............... 1-7/16 Inches (36 mm) 8 Ohm Dynamic Type Maximum Current Drain: ............................................ 180 mA Power Requirements: ................... 4 AA Alkaline Batteries (6.0 VDC), or 4 AA Rechargeable Ni-Cd Batteries (4.8 VDC) or Optional AC Adapter / or Optional DC Adapter Current Drain (Squelched): ......................................... 70 mA (Full Output): ...................................... 180 mA Dimensions (HWD): ............ 6 x 2-3/5 x 1-3/4 Inches (153 x 66 x 44 mm) Weight (without antenna, batteries, belt clip): ........... 8.2 oz (232 g) (please look at our rules and privacy policy) |
