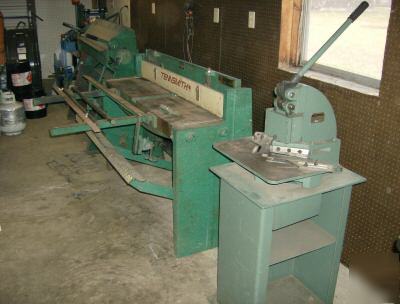

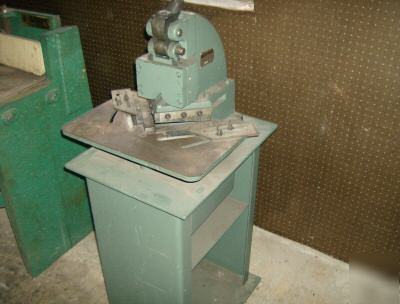

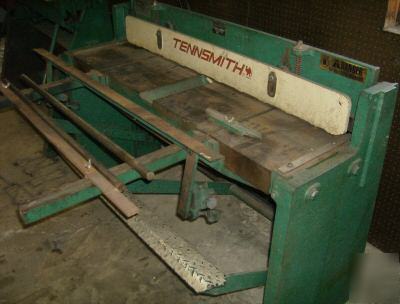

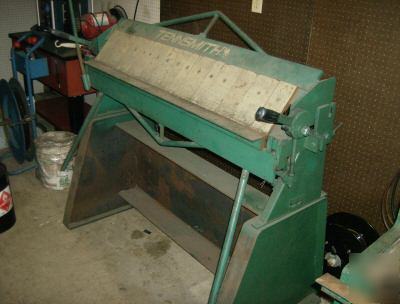

Shear  Model T5216 > Maximum Cutting Length: 52" >Maximum Cutting Capacity Mild Steel: 16 Gauge > Maximum Cutting Capacity Stainless Steel: 20 Gauge > Dimensions: 34" W x 60" L x 42" H > Weight: 1,100 lbs. approximately. It does have a full set of gauges for front and back. Box & Brake Model HBU48-16 > Capacity, Mild Steel 16 Gauge (.062") > Bending Length 48-1/4" > Max depth of box 4" > Weight 795 lbs. approximately includes the stand. This brake features a removable apron angle and apron insert permitting 1/4-inch reverse bends in lighter materials. The upper leaf and nose bar has a wide range of adjustment for radius bending. It has an apron stop rod for repeat bends, extension handles and a counterweight. I made the stand myself beacuse I did not like the factory unit. My stand Is twice the weight and twice as durable as the factory stand. Notcher Model  EHN-16 > Capacity, Notching, Mild Steel 16 Gauge > Notch, 6" x 6" 90* > Stroke, 3/4 > Ton, 4 > Weight 395 lbs. approximately includes the stand. (please look at our rules and privacy policy) |
