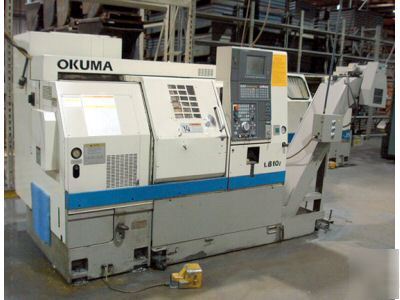

OKUMA LB10 II CNC TURNING CENTER LATHE OSP 700L We are so confident in this unit that we are offering a full return freight paid money back guarantee on this if not completely satisfied!!! This nice Okuma CNC lathe just came from a shop whose owner has decided to retire. Was purchased new for over $100,000!! Okuma lathes are very desirable and you don't see that many out there for sale. What a great opportunity to get a good used Okuma at a fraction of new. Machine is ready to go right back to work. Made by Okuma of Japan Model LB10 II Serial 0113 OSP 700L Control Comes with: ATS Nosepiece Chip Conveyor Here is some information from Okuma: "Simply awesome speed, close tolerances and power" is the way one way one small parts shop pro put it. Okuma has built he LB10-II Lathe from proven design criteria. This makes the LB10-II a powerful and accurate tool machining both chuck work and shaft parts in a variety of lot sizes. The LB10-II Lathe, with the Okuma OSP control system, servo drive units, spindle motor and patented encoder positioning device are all designed and built by Okuma. This total engineered system assures consistently high performance over an extended work life. Bed Construction An iron casting forms the base for the bed which provides for excellent chip disposal. The heavily ribbed, 30 degree bed casting is computer designed for superior stiffness to assure consistent accuracies. The 12.20" distance across large rectangular ways provide optimum support for the cross slide carriage. Spindle and Headstock Construction The spindle with 10 HP integral motor is supported by double row cylindrical roller bearings and high speed double angular thrust bearings. A two-point bearing support provides the ridgidty for this very accurate spindle. This spindle features a 140mm flat nose with 2.09" thru bore. This is a gearless headstock with 2 speed ranges of 50 to 6000 Rpm. Full HP is available from 750 rpm. Standard draw tube thru hole I.D. is 1.69" The hydraulic tailstock has a 2.16" diameter quill, a #4 Morse Taper and a stroke of 3.15". The quill can be actuated under part program command or by the foot pedals. Axis Servo Drives Both X and Z axes are driven by the ultra precise ball screws and pre-loaded ball screw nuts, center mounted between the ways or optimum drive conditions. The X axis ball screw, with a 1.260", is driven by 4 HP brushless servomotor and develops 1,010 lbs. of thrust. High Speed Turret Design The V12 turret, 14.17" across the flats, is designed to hold 12 tools, either I.D. ( 1.25" diameter ) or O. D. ( .75" square shank ) in any position. Stable, accurate cutting is assured by the use of a large coupling. Turret index speed is a fast, 0.2 second / station with shortest path indexing a standard feature. Chip Disposal System Slant bed construction permits chips to fall directly onto the chip pan or optional chip conveyor without the accumulating on the slides. Specifications Capacity Max. recommended work length Chucking Work: 5.91" Max. recommended work length Shaft Work: 11.81" Max. allowable Weight including chuck Chucking Work: 110 lbs. Max. allowable Weight including chuck Shaft Work: 220 lbs. Headstock and Spindle Spindle diameter at front bearing: 3.15" Range of Spindle Speed: 50-6000 rpm Number of spindle speeds: Auto 2 ranges Hydraulic Tailstock Max. Thrust ( recommended ): 440 lbs. @ 171 PSI Travel Cross Slides Travel X Axis: 5.91" Longitudinal Travel Z Axis: 13.78" Feedrates Rapid Traverse Speed X Axis: 590 ipm Rapid Traverse Speed Y Axis: 787 ipm Cutting Feed X and Z Axes: 0.0001" to 40.0000" IPR Slide Thrust Electrical: 3 Phase, 220 / 440 Volt Machine Dimensions without coolant tank: 82" x 65" 70" Tall Legnth with Coolant Tank / Chip Conveyor: 136" Approx. Weight 7600 lbs. Use this Form to obtain a Freight Quote on a flat bed Trailer. Check back often for new products and new sales. We pass our savings on surplus inventory along to you! We scour the market in order to provide the best quality tooling and equipment not found in other stores. Reliable Tool offers new and used machinery, tooling, and equipment from the aerospace, automotive, metalworking, plastics, and semiconductor manufacturing industries. Family-owned and operated since 1992, RT provides new and surplus equipment from trusted manufacturers such as Hardinge, Bridgeport, Powermatic, Sunnen, Hewlett-Packard and others. THE FUTURE OF TECH - MANAGEMENT Click here to read the entire Article © 2002 Reliable Tools Inc. All rights reserved. (please look at our rules and privacy policy) |
