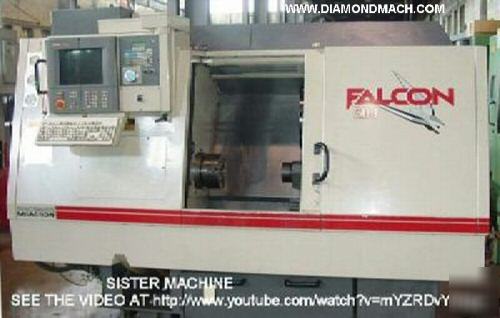

1998 CINCINNATI MILACRON FALCON 200 TURNING CENTER MAX SWING OVER BED...................................... 20.86" MAX TURNING DIAMETER.................................... 9.84" MAX SWING OVER CARRIAGE................................. 9.84" MAX TAILSTOCK POSITION.................................. 17.5" MAX MACHINABLE CENTER DISTANCE.......................... 16.53" STANDARD CHUCK SIZE..................................... 8" CROSS TRAVEL (X-AXIS)................................... 8.45" LONGITUDINAL TRAVEL (Z-AXIS)............................ 16.53" FEED RANGE (INFINITELY VARIABLE)........................ .01-630 IPM NUMBER OF TURRETS....................................... 1 TOOL POSITIONS.......................................... 12 TOTAL BAR CAPACITY............................................ 2" SPINDLE NOSE............................................ A2-6 SPINDLE SPEED RANGE (1 RPM INCREMENTS).................. 40-4500 RPM SPINDLE HORSEPOWER...................................... 15 HP ELECTRICS............................................... 230/460/3/60 APPROXIMATE MACHINE DIMENSIONS.......................... 109" X 55" APPROXIMATE MACHINE HEIGHT.............................. 77" APPROXIMATE MACHINE WEIGHT.............................. 6,600 LBS ACRAMATIC 2100 CNC CONTROL (P.C. BASED) BUCK/MMK 8†REAR ACTUATED HI SPEED CHUCK AND THRU HOLE ACTUATOR BED MOUNTED PROGRAMABLE TAILSTOCK W/ 3.74†DIA QUILL ACCEPTS MORSE TAPER #5 CENTERS STANDARD SET OF BOOKS AND MANUALS LARGE ASSORTMENT OF TOOLING SUCH AS HARD JAWS, TOOL POSTS, SOFT JAWS, TAIL STOCK QUILL, SPINDLE LINER, BAR PULLERS ETC. SELLER’S NOTE: “MACHINE IS IN EXCELLENT SHAPE. WE MUST MOVE IT FOR FURTHER EXPANSION AND UPGRADING OF OUR COMPANY. THE JOB SHOWN IN THE VIDEO HAS AN OD TOLERANCE OF ONLY .0004 TO WHICH IT WILL HOLD TRUE.†CONDITION: APPEARS IN EXCELLENT CONDITION ! LOCATION: INSPECT UNDER POWER IN AN OKLAHOMA PLANT PHOTO IS OF A SISTER MACHINE BUT A VIDEO OF THE ACTUAL MACHINE IS AVAILABLE ON YOUTUBE.COM AT http:// /watch?v=mYZRDvYnkgo Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes Diamond State Machinery with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of Diamond State Machinery, be added to the quoted purchase price and invoiced by Diamond State Machinery to Purchaser. The failure of Diamond State Machinery to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes. Some machinery and equipment is located at Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by Diamond State Machinery, all machinery and equipment uses 3 Phase power. Email: rachael_flores@machine--tools.com (please look at our rules and privacy policy) |
rachael_flores@machine--tools.com (Rachael Flores) for additional information. This email is used for forwarding to newsgroup user.
