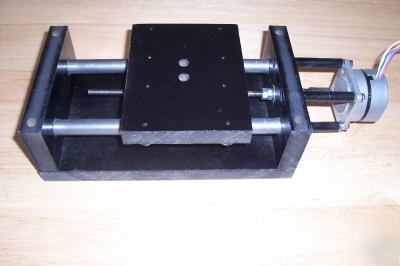

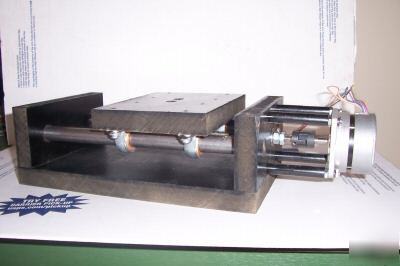

-Perfect for a table top cnc wood router. -Sizes are 3 3/8" tall x 5 5/8" wide x 12 1/2" long without motor. -Body and top plate is constructed of 3/4" MDF (painted). -Bearing rails are 5/8" diameter 1018 Steel. -Bearings are 5/8" mounted nylon bushings. I was using bronze bushings but I replaced them with nylon to help reduce friction. -Lead screw is steel 1/4-20 threaded rod with a simple nylon drive nut. -Lead screw thrust bearings (2) are integrated into the motor mounting area. -Motor mount is ready to accept your NEMA 23 motor. -Comes with a three piece flexible jaw motor coupler with 1/4" bores. -If you want to get started in the Hobby CNC world this is a perfect chance to purchase an affordable linear axis for your home system. -STEPPER MOTOR IS NOT INCLUDED -If you are interested in multiple units or different lengths please contact me and I can build and sell them as well. Email me if you have any questions. (please look at our rules and privacy policy) |
