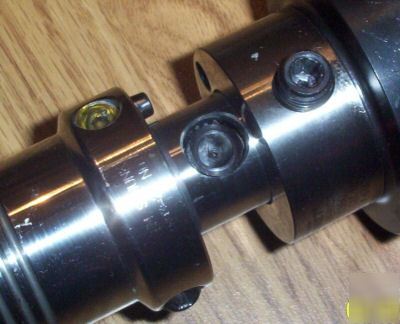

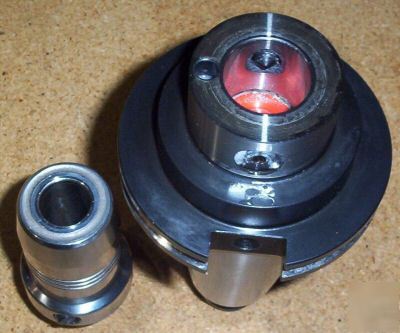

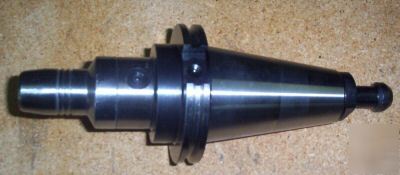

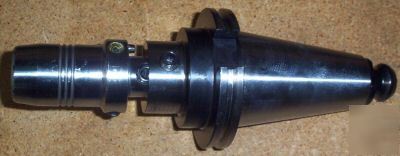

This tool features Komet's modular/interchangable ABS tooling system with CAT50 shank ABS50 driver A5210350 and 12mm diameter ABS® H expanding chuck A32 42140 for holding drills, reamers, endmills, etc. with 12mm shanks. * Adapter sleeves can be used to clamp several shank diameters with one expanding chuck. Sleeves are readily available from Komet. This is a high end quality item. If you want the best, this is it - list price on this item exceeds $900!! As with all tools that I offer, these tools are in very good condition. You will not be disappointed with the quality of these items. Please see my return policy for details. Features of ABS® H Expanding Chucks: * The ABS H variation is designed for use where greater concentricity is required and is fully compatible with the ABS standard modular program. During the clamping operation ABS H design compensates for play in the connection. * Maximum long-term concentricity and repeatability of < 0.003 mm (.00012"). * Internal central coolant delivered onto the cutting edge * Excellent vibration damping for better surfaces - vibrations occurring during the machining process are reduced via the hydraulic system. * Reduces chipping of tool cutting edge and increases service life of tools - often more than a fourfold increase * Significant improvement of the workpiece surface quality * High dimensional accuracy and machining quality on the workpiece * Rapid tool changing without peripheral equipment - Simply insert the tool into the hydraulic expansion toolholder, then tighten the clamping screw up to the stop using the Allen key – done. * No additional investment or maintenance efforts for components * No manufacturing down-times caused by failure of peripheral equipment * Closed system keeps dirt, coolants, lubricants and chips from penetrating * Maximum ease of use - readily accepts the following tool shanks: May include either RB6E-0001C or RC6E-0001 retention knob If you have any questions on these items please email me: E_gutierrez@machine--tools.com I will reply as soon as possible. US$0.00 - US$100.00: no charge US$100.01 - US$50,000.00: US$0.55 per US$100.00 of value and US$1.50 minimum Positive feeback is most appreciated and will be returned in kind... Be sure to add me to your favorites list! (please look at our rules and privacy policy) |
