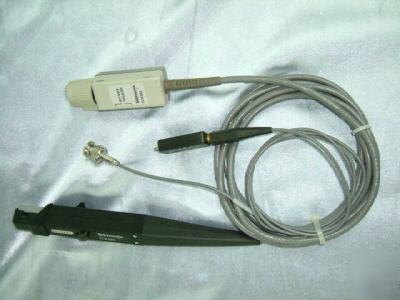

Selling 1 unit of the Tektronix TCP202 and 1 unit of TEK CT-1. Below is some brief description. TEKTRONIX TCP202 . See Tektronix specifications links. http:// /site/ps/0,,60-12572-INTRO_EN,00.html This is a Tektronix TCP202 DC coupled current probe.This probe is rated for DC to 50MHz, for currents up to 15 amperes, at bare-wire voltages up to 300V. This probe is recommended for use with TDS-series oscilloscopes. * Current: 15A DC+ACpk, 50A peak pulse * 500 x 10e-6 Amp-Sec. Product CT1/CT2 Current Probes. See Tektronix products links. http:// /site/ps/0,,60-12572-INTRO_EN,00.html The CT1 and CT2 Current Probes are designed for permanent or semi-permanent in-circuit installation. Each probe consists of a current transformer and an interconnecting cable. The current transformers have a small hole through which a current carrying conductor is passed during circuit assembly. The P6041 Probe Cable provides the connection between the CT1 and CT2 Current Transformers and a BNC oscilloscope input. A 50 Ω termination is required to terminate the cable when connected to a high impedance (1 MΩ) oscilloscope input. One probe cable can be used to monitor several current transformers that have been wired into a circuit. (please look at our rules and privacy policy) |
brandinieves@machine--tools.com (Brandi Nieves) for additional information. This email is used for forwarding to newsgroup user.
