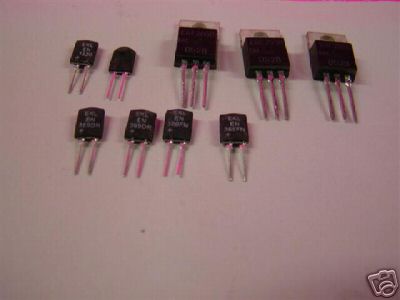

EKL High Power Upgrade Kit #3a GALAXY DX-77, 88HL,99V 3a -GALAXY DX-77HML, DX88HL, DX99V 10 Meter transceivers. HIGH POWER CONVERSION UPGRADE FOR AM/FM/SSB 10 METER RADIOS REPLACEMENT PARTS FOR THE FOLLOWING GALAXY 10 METER RADIOS This application and instructions describes how to substitue/add a total of three (3) ERF-2030's for the discontinued Mitsubishi 2SC1969 and 2SC2166 RF transistors in the Galaxy DX77HML, DX88HL, DX99V, 10 Meter transceivers. This application note may apply to other similar transceivers manufactured by RCI The supplying of this informaiton in no way holds EKL Components, or any of its members, responsible for liable for any damage incurred to person or properly. This aplication note, or any other information, provided by EKL Components is to be used at YOUR OWN RISK. You will be supplied with the DETAILED INSTRUCTIONS and parts needed for the replacement - ALL THE FOLLOWING PARTS INCLUDING THE OPTIONAL ITEMS WILL BE INCLUDED IN THIS KJT * 1 pc 480K ohm, 1/4 watt resistor * 1 pc 33k ohm 1/4 watt resistor * 1 pc 100 ohm, 1/4 watt resistor * 1 pc 1500pF Ceramic Disc Capacitor YOU WILL ONLY RECEIVE THE PARTS NEEDED AND DISCRIBED IN THE ITEM - THE PICTURE SHOWS EXTRA PARTS JUST FOR ILLUSTRATION ONLY - YOU WILL RECEIVE EVERYTHING THIS ITEM SAYS IS INCLUDED EKLComponents' ERF-2030 RF Power Transistor and EN-Prefix Companion Parts Everyone is in a panic! Last year, Mitsubishi discontinued the 3 most popular transistors in our industry - the 2SC2166, 2SC1969, and 2SC2312. These parts are already becoming scarce and prices are skyrocketing! The panic is over! The ERF-2030 is versatile 25 watt RF transistor that can replace ALL THREE discontinued Mitsubishi parts! 1. The ERF-2030 is a 25 watt transistor - therefore, it is not just a replacement part, but also an UPGRADE to the old Mitsubishi parts * EKL Components has a documented modification for turning a Galaxy 33 into a 50 watt radio using the 3pcs of the ERF-2030 and 2 companion parts 2. The ERF-2030 is not an 'ELECTRICAL DROP-IN-REPLACEMENT' for the 2SC2166, 2SC1969, and 2SC2312. However, circuit modifications on most radios are minimal and documentation is readily available for FREE 3. The ERF-2030 is a 'MECANICAL DROP-IN REPLACEMENT' for the 2SC2166, 2SC1969, and 2SC2312. This means that the ERF-2030 features a TO-220 package with the SAME pinout configuration as the 2SC2166, 2SC1969, and 2SC2312. Therefore, NO mechanical modifications to the ERF-2030 are necessary for most installations 4. EKL Components manufactures a series of companion parts to the ERF-2030. The EN-1230, EN-369DR, amd EM-369FN are available to make radio modifications easier and maximize performance. EKL Components rates the ERF-2030 at 25 watts PEP. This is a CONSERVATIVE rating! In lab tests and real world modifications, a single ERF-2030 has produced as much as 40 watts PEP. All results will vary and are solely determined by the circuit surrounding the ERF-2030 Example AT LEAST 25 WATTS OUTPUT AND UP TO 50 WATTS Please take note of the following things concerning the policies of ALL GREAT DEALS STORE - they will be adhered to with no exceptions SO PLEASE PAY CLOSE ATTENTION TO ALL THE FOLLOWING THINGS * TUBES AND TRANSISTORS ARE NOT COVERED BY WARRANTY regardless of what happened or why - this is the same with both companies. NO EXCEPTIONS * NO RETURNS ON ANY AND ALL ELECTICAL ITEMS INSTALLED, no EXCEPTION (please look at our rules and privacy policy) |
