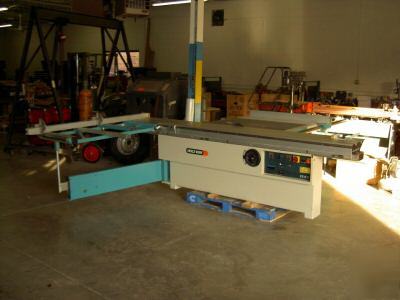

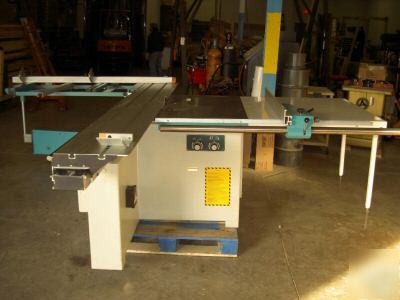

This is the same model, (newer) but only has one digital read out. This is the 1243 Model. (Not the 1243D) This table saw was bought in 2001 and is in excellent working condition. This saw is complete with all accessories and manual. Holz-Her 1243 Sliding Table Saw Specifications: * Scoring unit with separate motor and external adjustment * Sliding table lock at two positions * Aluminum sliding table with telescopic arm and positioning of the fence to: 90º; - 15º; - 22.5º; - 30º; - 45º; * Over arm saw blade guard (prepared to accept rollers) * Extension table for parallel cuts * Exclusive HOLZ-HER design - "hardened" guide rail system, for ultimate precision * Cutting width to rip fence: 1500mm (59 in.) * 126" Carriage travel with HOLZ-HER's rod and double roller system, anodized sliding carriage can be locked from (3) different locations. * Sliding table dimensions: 16" x 126" (400x3200 mm) * Cross cut capacity: 133" (3370 mm) * Cutting width: 59" (1500 mm) * Table dimensions: 26" x 46" (650 x 1160 mm) * Maximum saw blade dia: 17,7" (450 mm) * Main saw arbor: 1,18" (30 mm) * Maximum cutting height at 450 (17,7") mm dia: 6,1" (155 mm) * Cutting height at 450 (17,7") mm dia: 4,5" (115 mm) * Saw motor speeds: 3200-4000-6000 r.p.m * Exhaust connection dia.: 3,9"/4,7" (100/120 mm) * Machine weight (approx.): lbs 2163 / Kg 981 * Motor Power: Kw 0,9 (HP 1,2) * Scorer blade dia.: 4,9" (125 mm) * scorer saw arbor: 0,8 (20 mm) Please call Mr. Charlie or stop by!!! Gurnee Tools & Machinery Enterprises WE WILL ALSO TAKE BUSINESS CHECK. FOR LOCAL PICK UP or FREIGHT SERVICE! PLEASE CALL IF YOU LIVE OUT OF STATE AND ARE INTERESTED. WE WILL BE GLAD TO HELP YOU LOAD. (please look at our rules and privacy policy) |
Ken-Franklin@machine--tools.com (Ken Franklin) for additional information. This email is used for forwarding to newsgroup user.
