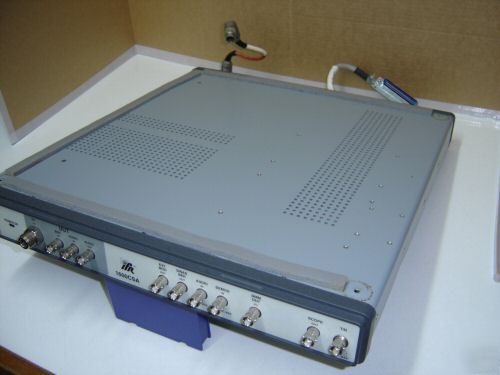

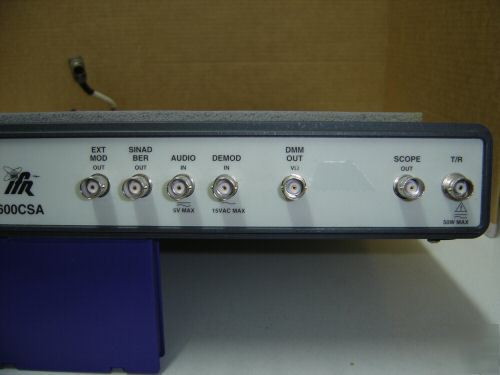

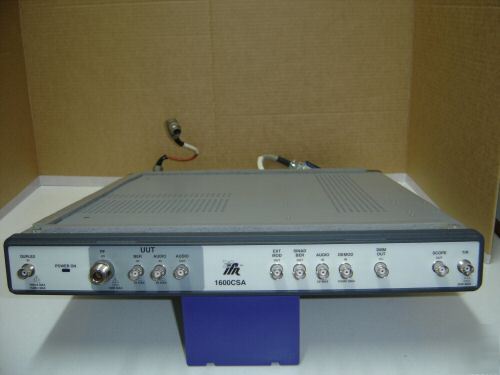

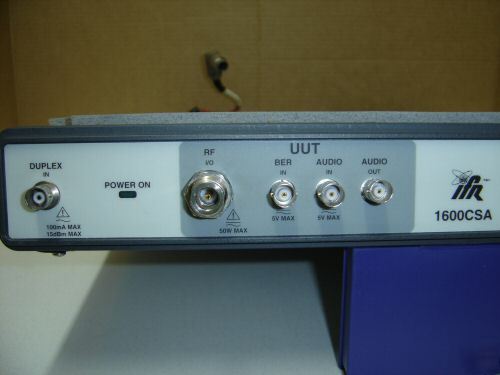

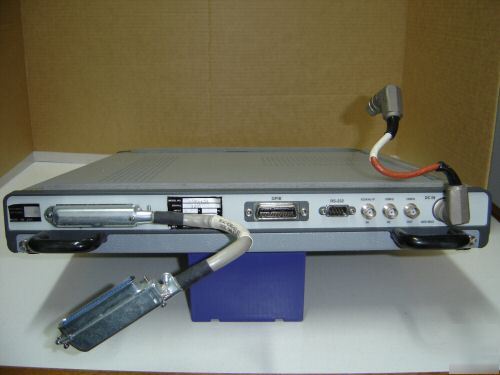

Option 10: AMPS Cellular System Analyzer Hardware- Dual Mode Cell Site Monitoring and Simulation. Lists for $3,995.00 Description: When used in conjunction with an IFR-1600S, this CSA Option Provides a Full Featured TIA/EIA-136 Test Solution. The FM/AM-1600S/CSA combination provides you with the industry's only fully approved test solution for TIA/EIA 553A analysis. The FM/AM-1600S/CSA is accepted for confirming the proper operation of the critical dual mode analog/digital authentication procedure. It also offers a complete suite of tools for comprehensive signaling protocol compliance testing of TIA/EIA-136 dual mode TDMA/DAMPS phones on all the world's cellular frequency assignments below 1 GHz. The FM/AM-1600S/CSA provides both base station and mobile phone testing. This unit has been well looked after and is in good and clean physical condition. It was removed from a working IFR-1600S/CSA system as the Cellular Option is not required. The 1600-CSA Hardware unit complete with SCSI & Power cable to connect directly to your IFR-1600S. This unit bolts onto the base of your IFR-1600S in place of the cabinet feet. CSA Option Manual available in PDF format only. You will need to make several short BNC - BNC patch cables to connect it to the IFR. (please look at our rules and privacy policy) |
