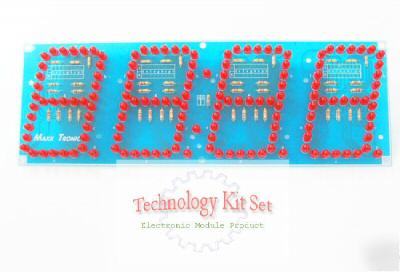

4 Digits Seven Segment Display 3.35 inches in height, 5 LEDs per segment, 1 for the decimal, and 2 for the colon. 12vDC. This is a fully assembled and tested module. Each segment runs on 15mA, the decimal 15mA, and the colon 15mA, with a total current of 495mA at 12vDC. Connect this module to your seven segment driver on the copper side of the board, using the common cathode and the common anode. * Display dimensions: 46 x 75 mm. or 1.78 x 3 inch. * PCB dimensions: 250 x 85 mm. or 9.85 x 3.35 inch. * Consist: 5 LED's per segment and a LED's for a decimal point (p) and 2 LED's for the colon point. * At 12 Vdc. A segment current ~ 15 mA. A decimal point (p) current ~ 15 mA. A colon point current ~ 15 mA. Total current ~ 495 mA. (please look at our rules and privacy policy) |
