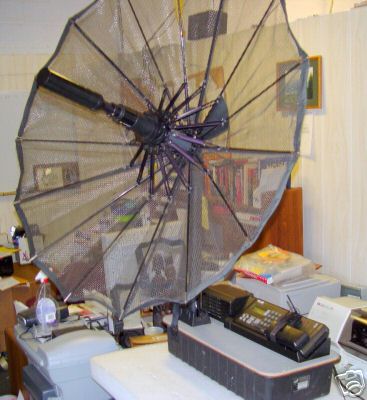

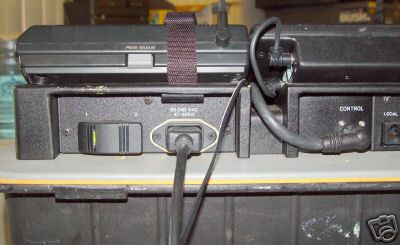

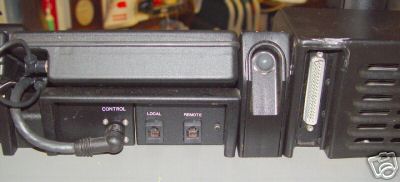

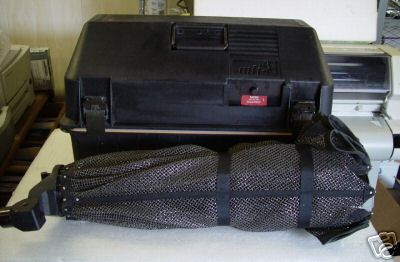

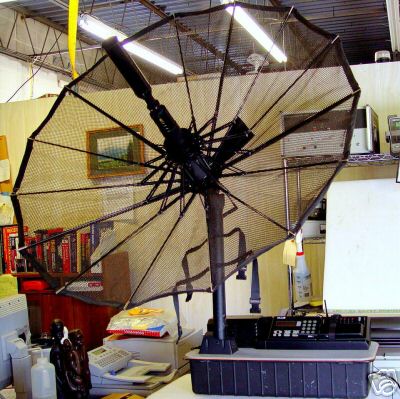

AS SEEN ON THE NEW WEEKLY SERIES JERICHO THE FOLLOWING INFO. WAS TAKEN OFF THERE WEB SITE Dimensions: 12"W x 14"H x 25.5"L Includes antenna, telephone, electronics, control unit and integral case, etc. 85-260 VAC @ 47-440 Hz, 100 watts TX, 70 watts idle 12 or 24 VDC w/ 250 watt inverter. Tx Frequency: 1636.5 - 1645 MHz Rx Frequency: 1535.0 - 1543.5 MHz Gain/Noise Temp: Better than -2dB/ºK Operating Temperature: -35ºC to +55ºC Relative Humidity: 95% max at +40ºC Precipitation: 10cm per hour max Vibration: MIL STD 810-D Trans. Comms * Comes with 56/64 Kbps simplex (outbound) sync data * Optional internal 56/64 Kbps duplex (two way) sync data * High gain antenna yields superior performance * Field proven design makes the system impenetrable to atmosphere moisture * The ultimate transportable telecommunications terminal Telephone: Four (4) RJ-11 for 2-wire devices High Speed Data: One V.35, 37-pin "D-style" connector Power: One filtered IEC connector Voice: Similar to POTS grade voice Fax: Group 3 capable, RJ-11 connector Data: RJ-11,using modem up to 28.8Kbps (please look at our rules and privacy policy) |
