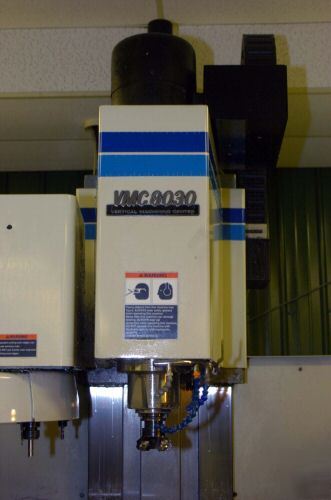

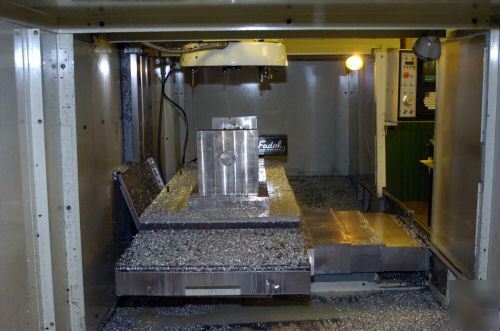

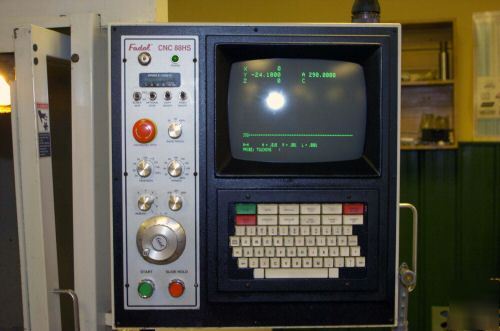

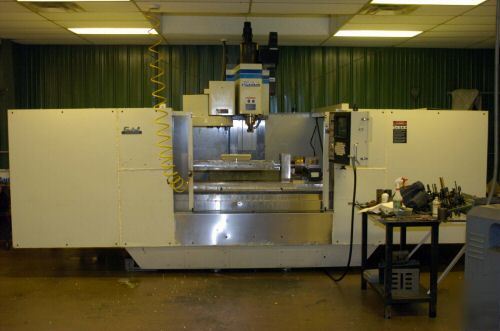

The Standard Series Vertical Machining Centers are engineered to deliver a wide range of cutting performance to help make your job shop competitive regardless of whether your applications demand low or high speed spindle cutting power. Standard Series VMC features boxway construction for the X, Y and Z axis slide motion. It doesn’t matter if you are cutting steel or aluminum, this machine has all you need to rough-out material fast then execute final passes for smooth and accurate finish parts. The work envelope is 80â€x30â€x30†in X, Y and Z axes. Large and long parts are easily loaded onto the table from the front or side doors of this agile 18,000-pound VMC. A standard 10,000 RPM 15 HP spindle with automatic mechanical HI/LO shifting delivers a wide range of impressive metal cutting power. Box Way construction is utilized to provide the needed vibration dampening when high torque cutting is done at low spindle speeds or high horsepower cutting is done at high spindle speeds. Includes 21 station geneva style tool changer. 88HS CNC CONTROL - DNC CAPABLE WITH PROGRAMABLE AIRLOCK BRAKE T-SLOTS (NO. x WIDTH x SPAN) 5 x .687†x 5.5†CUTTING FEED RATE (X/Y/Z) .01-250 ipm RAPID TRAVEL RATE (X/Y/Z) 400 ipm max MAX. WEIGHT ON TABLE 3,751 lbs.C BALL SCREW SIZE 1.75" Dia. (X,Y) / 1.50" Dia.(Z) SPINDLE NOSE TO TABLE 5.5â€-35.5†SPINDLE CENTER TO COLUMN WAYS 16" AXIS POSITIONING** +/- .0004†AXIS REPEATABILITY** +/- .0002†POWER TRANSFER Automatic Mechanical SPINDLE ORIENTATION Electromechanical ATC, TOOL SELECTION Bi-directional SPINDLE DRIVE MOTOR AC, VECTOR Drive TORQUE* 160 ft.-lbs.AXIS DRIVE MOTOR (X/Y/Z) AC, 5,000 lbs.* thrust AIR PRESSURE REQUIREMENT 120 PSI, 15 SCFM POWER REQUIREMENT (3-Phase) 40 A, 230 VAC COOL POWER Spindle, Y Ballscrew (please look at our rules and privacy policy) |
