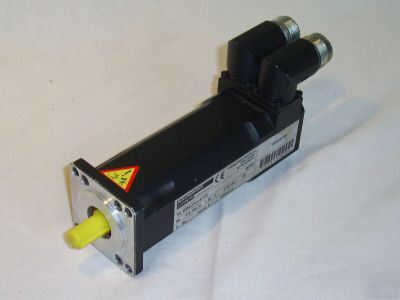

We have over 20 years experience in the supply and servicing of servo and automation equipment. All items are tested before listing. This 6SM27-LL-4500 brushless servo motor is a 6 pole, sinusoidally wound motor made by Kollmorgen Seidel and is fitted with a resolver. The motor has a 400V winding making it suitable for use with servo drives providing up to 600Vdc bus voltage. This motor will, however, operate on 300V DC up to 2250rpm. The motor is rated at 0.8 Nm holding torque, 0.72 Nm rated torque at 4500rpm and 3.62 Nm peak torque, with a torque constant of 0.98 Nm/A. Motor inertia is 0.14 kgcm2. The motor flange measures 55mm square, with a 9mm shaft (No keyway), 40mm diameter locating spigot and four mounting holes on a 63mm PCD. Overall length is 190mm and weight is about 1.4kg. Although not brand new, this item has been tested and is fully functional. Please follow the link for further information. Although used, this item has been tested and is fully functional. The item carries a 6 months, back to base, warranty (excludes failure due to incorrect use, misuse, damage due to external influences). Keywords - Servomotor, Fritz A. Seidel, Schindler and Wagner, Schiwa, 60WKS-M, 60WKS-CE (please look at our rules and privacy policy) |
