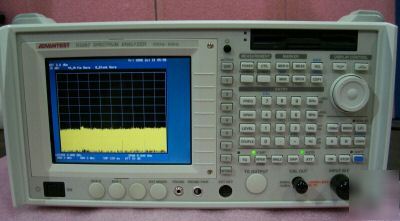

New communication technologies such as 3rd Generation Mobile (IMT-2000), microwave digital broadcast, high-speed multimedia mobile access (MMAC), and satellite-based services require the latest in spectrum and modulation measurement capabilities. These new services must be introduced in less time and for more users than ever before. The R3267/R3273 are high-performance spectrum analyzers designed to meet these needs. The R3267/R3273 features a frequency span accuracy ±0.2% (typ.) and a dynamic range of -145 dBc/Hz (typ.) in the 2 GHz band to allow accurate, repeatable measurements for high-quality digital signals. Its 1 Hz to 10 MHz resolution bandwidth filter and ability to perform at 70 dB (typ., at 5 MHz offset) ACP measurement on W-CDMA makes it ideal for testing of wide band signals. With a frequency range from 100 Hz to 8 GHz (R3267) and 100 Hz to 26.5 GHz (R3273), the R3267/R3273 allow comprehensive measurements of even high frequency systems. The digital modulation analysis option offers one-button testing of modulation parameters for communication systems including PHS, PDC, IS-136, DECT, GSM, GPRS, EDGE, IS-95, cdma2000, CDMA2000 1XEVDO (HDR), Bluetooth as well as W-CDMA (3GPP). The R3267/R3273 provides excellent value with its combination of spectrum and optional modulation analyzer. It can be used with applications ranging from research and development of communication devices and modules to production line and deployment testing of communication infrastructure equipment. The R3267/R3273 : a new family of analyzers to test today's, and tomorrow's communication systems. High Frequency and Wide Bandwidth Measurements * Resolution bandwidth : 1 Hz to 10 MHz * Span accuracy : ±1% or better High Dynamic Range Measurements * Dynamic range : -145 dBc/Hz (2 GHz band, typ.) 70 dB or better (5 MHz offset, typ.) * Average noise level : -154 dBm/Hz (2 GHz band) * Input attenuator : 75 dB in 5 dB steps(R3267) * 1 dB gain compression : 0 dBm (typ. +3 dBm) * 3rd order intermodulation distortion : -90 dBc or less * Trace update rate : up to 20 times/sec. Simplified, Automated Measurements for Mobile Communications * ACP (adjacent channel leakage power) measurement * OBW (occupied bandwidth) measurement * Channel and total power measurement * Spurious emission measurement * 2-trace simultaneous measurement * Delayed sweep/Gated sweep functions * 1 Hz resolution frequency counter * SSB phase noise automatic measurement * IM (Inter Modulation) automatic measurement * 3.5-inch MS-DOS compatible floppy disk drive * Standard I/O interfaces for integration : GPIB, RS232, Parallel, and VGA Digital Modulation Analysis Option High Stability Frequency Reference Source High Stability Frequency Reference Source W-CDMA (3GPP) Analysis Software GSM/GPRS/EDGE/DECT Analysis Software PDC/PHS/IS-136 Analysis Software AMPS/JTACS/NTACS Analysis Software * Unit is new in box and opened for display purposes only. * Includes 5 manuals, never opened. See pictures. (please look at our rules and privacy policy) |
