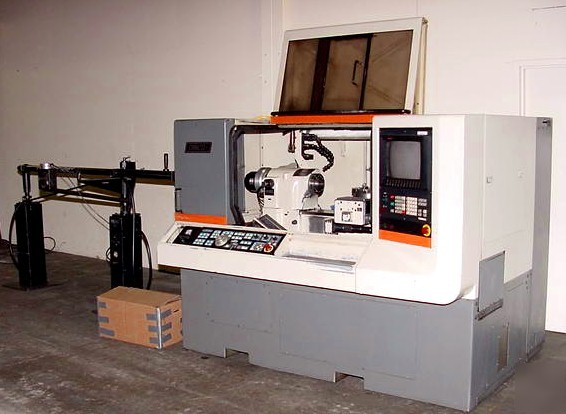

Used Machinery and Machine ToolsUsed MachineryUsed Machine ToolsThousands of Used Metalworking and Plastic Machines & New Machine Tools Photos, Full Descriptions and Prices - Fast & Easy * Manual Lathes, Mills, Drills, Saws * Ovens, Furnaces & Environmental HARDINGE CHNC-II+ HIGH ACCURACY CNC LATHE w/FANUC 10TF HARDINGE CHNC-II+ HIGH ACCURACY CNC LATHE w/FANUC 10TF HARDINGE MODEL: CHNC-II+ SUPER PRECISION CNC LATHE SPINDLE CONFIGURATION....................... ANSI A2-5" HOLE THROUGH SPINDLE........................ 1-7/8" 16C COLLET CAPACITY......................... 1-5/8" SPINDLE SPEED RANGE (1-RPM STEPS)........... 50-5000 RPM AC SPINDLE DRIVE (100% POWER RATING)........ 7.4 HP AC SPINDLE DRIVE (135% POWER RATING)........ 10 HP AC SPINDLE DRIVE (162% POWER RATING)........ 12 HP MAX. SWING OVER BED......................... 14" MAX. THREADING DIAMETER..................... 8" MAX. TURNING DIAMETER....................... 8" MAX. FIXTURE DIAMETER....................... 9" MAX. ALLOWABLE WEIGHT ON SPINDLE (INCLUDING WORKHOLDING DEVICE)............ 75 LB NUMBER OF STATIONS.......................... 8 SQUARE TOOL SIZE (STANDARD)................. 1/2" ROUND TOOL DIAMETER (STANDARD).............. UP TO 3/4" MAX. X-AXIS TRAVEL.......................... 4-1/2" MAX. Z-AXIS TRAVEL.......................... 12" MAX. X AND Z AXIS FEEDRATE.................. 200 IPM MAX. DISTANCE FROMTURRET FACE TO SPINDLE.... 12-1/2" INDEXING TIME (STATION 1 TO 8).............. 2 SECONDS INDEXING TIME (STATION-TO-STATION).......... 1 SECOND MIN. PROGRAMMABLE RESOLUTION................ 0.000010" MIN. TOOL OFFSET CAPABILITY................. 0.000010" COMPRESSED AIR REQUIREMENT.................. 70 MIN. TO COOLANT SUMP CAPACITY....................... 30 U.S. GAL APPROX SKIDDED WEIGHT....................... 5000 LBS. MACHINE DIMENSIONS (LENGTH)................. 91-1/2" DIMENSIONS WITH CHIP REMOVAL SYSTEM: 126-1/2" L x 61-1/2" D x 64-1/2" H HEIGHT WITH GUARD DOOR RAISED............... 80-3/4" GENERAL NUMERIC 10TF CNC CONTROL FEATURES: BACKGROUND EDITING-PART PROGRAM INPUT DURING MACHINING CYCLE ALPHA-NUMERIC KEYBOARD FOR MDI (MANUAL DATA INPUT), TOOL DATA CHANGES, AND PART PROGRAM EDITING. SYMBOLIC FAPT TURN CONVERSATIONAL PROGRAMMING CONSTANT SURFACE SPEED PROGRAMMING IPM/IPR (MMPM/MMPR) PROGRAMMING ABSOLUTE/INCREMENTAL PROGRAMMING PROGRAM SEARCH/SEQUENCE NUMBER SEARCH CANNED CYCLES-TURN, CONTOUR, FACE, THREAD, DRILL, GROOVE, AND PATTERN REPEAT (CASTING CYCLE) HARDINGE CUSTOM MACRO CYCLES-FEED STOCK, DEEP-HOLE DRILL, TAP, KNURL, DIE HEAD THREAD, CUT-OFF COLLET DWELL, AND VERTICAL SLIDE/PARTS CHUTE ACTIVATE CONTINUOUS LEAD THREAD CUTTING WORK COORDINATE SYSTEM (PART POSITION OFFSET) SPINDLE SPEED RANGE (50 TO 5000 RPM) 200 IPM (5 MPG) X- AND Z-AXIS TRAVERSE RATE MANUAL PULSE GENERATOR (MPG) HANDWHEEL TOOL DATA OFFSETS-32 PAIR/AXIS STORED PITCH ERROR COMPENSATION MACHINE LOCK (PROGRAM TEST MODE) 14-INCH, COLOR CRT FOR GRAPHIC DISPLAY-GRAPHIC TOOLPATH SIMULATION WITH DATA DISPLAY IN ENGLISH TEXT OIL-TIGHT MEMBRANE MACHINE CONTROL PANEL WITH TACTILE MANUAL FEEDRATE OVERRIDE (0 TO 120%) MANUAL RAPID TRAVERSE OVERRIDE (LOW-15-50-100%) MANUAL SPINDLE SPEED OVERRIDE (50 TO 120%) REVERSAL ERROR COMPENSATION (X-AND Z-AXIS) - GN FANUC 10TF CONTROL W/FAPT PROGRAMMING AND 0.000010" PROGRAMMABLE RESOLUTION AND TOOL OFFSET CAPABILITY Machine Location: HARRISON, NJ Click Here For More Hardinge Machines Click Here For More CNC Machines - CNC TURNING CENTERS - CNC LATHES(s) Call Mike at (***) 873-6224 ext 7540 Call Alex at (***) 873-6224 ext 7613 Finance This Equipment For Your Business - Click Here Finance Equipment For Your Business - Click Here * Machinery Values is one of the world's largest machinery dealers, in business since 1971. * New machines are covered under their own warrantees. Details of each warranty can be found within the quotation for all new machines. * Most items in our store are located in our warehouse in Harrison, New Jersey - about 9 miles from New York City. You may inspect any item prior to purchase, under power in most cases, simply by calling and arranging an inspection. There is no charge for this. Summary of My Selling Policies Machinery, Tooling and Accessories used in manufacturing are usually exempt from sales tax in our state (New Jersey). A sales tax exemption certificate may be required if you are a New Jersey company. Equipment purchased for personal use is subject to sales tax if you are a New Jersey resident. Read my policies on my summary (please look at our rules and privacy policy) |
G_golden@machine--tools.com (Gay Golden) for additional information. This email is used for forwarding to newsgroup user.
