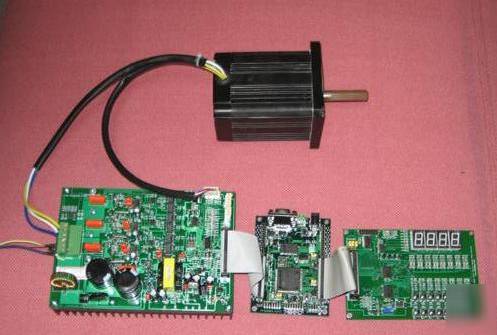

MCK2812 (Low Voltage) Servomotor Driver Evaluation Board MCK2812 LV Evaluation Board is designed for high performance DMC system and is based on Texas Instruments TMS320F2812 DSP. It is a reliable and fast servomotor driver solution, which contains three parts: EVM2812 board (DSP part), LVD (driver part) and IB2812 (interface part). MCK2812 LV Evaluation Board can directly connect with one or two DC brush/brushless servomotor, AC asynchronous motor, AC permanent-magnet synchronous servomotor and stepper motor to form a digital servo motion control system. * Digital motion control (DC brush servo, DC brushless servo, stepping servo, AC servo) * Digital control machine-tool * VFC (Variable Frequency Control) LVD (Low Voltage Driver) Board Features: * Power supply: 24~80 VDC, maximum peak value current 10A, output power up to 400W * Special driving chip and 20A-200V MOSFET tube, with over-current, over-voltage, under-voltage and over-heat protections * On-board 30W rebounding power switch, able to supply large current therefore result in a safer system * Input interface for incremental photoelectric encoder signal and Hall sensor signal * On-board precise resistors to perform three-phase current sampling and guarantee the accuracy * On-board filter to reduce EMI interference according to FCC-15 standard * May connect with DC brush/brushless servomotor, AC asynchronous motor, AC permanent-magnet synchronous servomotor and stepper motor to form a digital servo motion control system when operating along with EVM 2812 board EVM2812 Evaluation Board Features: * On-board TMS320F2812 DSP, 32-bit fix-point Flash DSP, operating at 150Mhz * 128K*16 bits on-chip Flash program memory, Flash encryptable * 256K*16 bits extended SRAM as program/data RAM (upgradable to 512K*16 bits) * 8K words (16K bytes) extended EEPROM as parameter ROM, with SPI interface * 4 channels of 12-bit extended DAC sync output with SPI interface * Standard RS232, CAN communication interface * On-board VL-Bus, data/address/control leadout wires and special function pins with leadout wires * On board IEEE1149 JTAG interface for real-time emulation * Customed designed AD power supply and AD reference voltage to insure the accuracy of AD sampling * Co-operate with SY-IB2812 to realize keyboard and displaying panel * Two independent MCBUS designed for motion control system; form a complete digital servo motion control system by co-operating with one or two L/HVD (Low/ High Voltage Driver) board to drive one or two motors IB2812 Interface Board Features: * To evaluate the extended keyboard interface and display panel interface of TMS320F2812DSP chipset * Able to operate with SY-EVM281 via MCBUS * 6 channels of PWM output (PWM1-6 if goes to MCBUS of Event Manager A, PWM7-12 if goes to MCBUS of Event Manager B) * 6 I/O of I/O PORTB to press keys and LEDs * 8 channels of AD input either AD0-7 or AD8-15 * Special purpose chip with SPI interface to administer the nixie tube and press keys * Power supplied by EVM2812 board * Motor control source code for DC brush/brushless servomotor, AC asynchronous motor and AC permanent magnet servomotor SPWM and SVPWM * (optional)DC brush/brushless servomotor and AC motor are available in our company "The quality of this low price MCK2812 Eval board is amazingly good relative to the price. It doesnt need a genius to find the best deal online." You must have a return authorization number to return your product. Please contact Trina.vincent@machine--tools.com to obtain an authorization number, which shall be valid for 14 days after issued. This product is covered by a warranty of 12 months. You must have a return authorization number to service your product. Please contact Trina.vincent@machine--tools.com to obtain an authorization number. (please look at our rules and privacy policy) |
