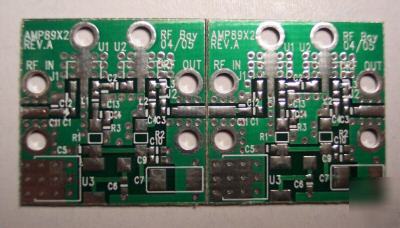

This Lot (Qty. 2) of PCB is designed for RF MMIC Amplifier with 2-Stage SOT-89 package amplifier cascade. There is matching layout as an option for farst stage Input as well as second stage output. Size of the PCB 1"x1"x0.031", FR-4 material, double-sided with soild plated ground on the back. Will fit SMA/SMB or MCX RF connector with 0.031" board space. The layout also includes input/output DC coupling capacitor 0603 size, RF choke (0603 size) and drop resistor (1206 size), de-coupling capacitors (0603 size) and voltage regulators (78M08 for 8V or 78M05 for 5V in DPAK package). This PCB is designed for higher gain amplifier block and with higher output power. SOT-89 package MMIC includes but not limited to Sirenza SGA, NGA, SBA, SBB, SBF, SBW, SXB, SHF,SXA, SXT series, Mini-circuits GALI series, RF Microdevices RF33XX series with SOT-89 package, Hittite Microwave HMCxxxST89 series, Watkins Johnson EC, ECG series SOT-89 package, Agilent ATF-50189, ATF-52189, ATF-53189, etc. Reference schematic and assembly for this PCB in pdf format is attached below: http:// /SCH/A89X2SCH.pdf http:// /SCH/A89X2ASY.pdf RF Housing and SMA connector also available in my Kit listing below: Special designed heatsink is available (see picture in my MPA-4-30 listing below): (please look at our rules and privacy policy) |
