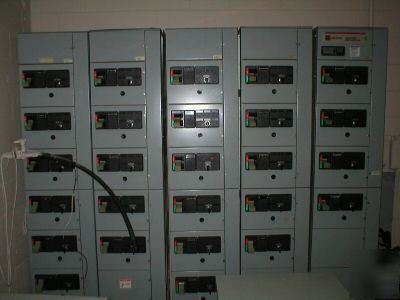

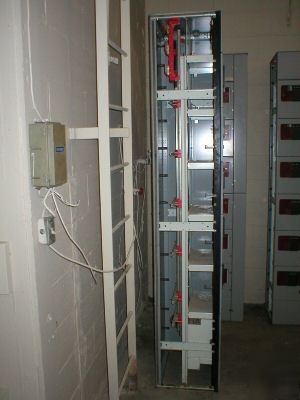

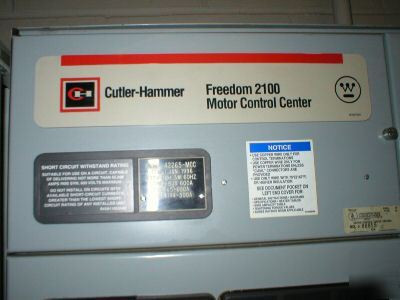

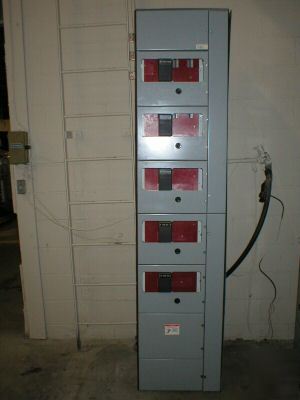

Cutler-Hammer Freedom 2100 Motor Control Center/MCC Vertical Structure Only - One Section The Eaton's Cutler-Hammer Freedom 2100 (also known as F2100) structure was introduced in 1995 and is based on the Westinghouse 5 Star, Series 2100 and Advantage MCC design. This vertical structure is 20 inches wide, 90 inches high, and 16 inches deep. Vertical sections may be bolted together forming a single lineup with continuous horizontal bus and open horizontal wireways. Unit height is measured in 6-inch increments up to a maximum of 72 inches of usable vertical space. A two-tone paint system is used for this design. ANSI 61 gray is applied to the exterior and doors. Starter units (not included) are 13-3/4 inches wide with 4-5/8-inch wireways. The Freedom starter (not included) is used in this design along with the HMCP or HMCPE motor circuit protector(not included). The F2100 starter unit’s handle mechanism (not included) is a gray toggle type handle with a black exterior mounting panel and is used on the Advantage and 5 Star/Series 2100 designs. Bus and bus support systems are typically braced to withstand fault currents of 65,000 amperes. This MCC was used since 1996 to control the motors in a tunnel (conveyor) type car wash system. There are no cosmetic flaws or corrosion on any of the cases. It was orginal set up for a 480 Volt, 3 phase, 3W, 60Hz, Horizontal Bus 600 Amp application. email postal code and if you have a forklift or loading doc for freight cost (please look at our rules and privacy policy) |
